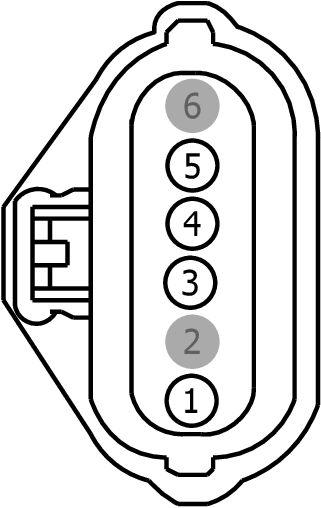

Connector End View C1457B - Direct Current/Direct Current (DC/DC) Converter Control Module
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C1457B | DIRECT CURRENT/DIRECT CURRENT (DC/DC) CONVERTER CONTROL MODULE | 14290 | part# N/A | Not Available |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 6R8T-14474-CA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number |
|---|---|---|---|---|---|
| 1 | SBBF9 (WH-RD) | 20 | FUSE - 159 | 6R8T-14474-CA | |
| 2 | * | * | Not Used | N/A | |
| 3 | VDB04 (BU) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH | 6R8T-14474-AA | |
| 4 | VDB05 (WH) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW | 6R8T-14474-AA | |
| 5 | CYD14 (GN-BN) | 22 | CTRL MOD. - DC/DC CONVERTER # DC/DC WAKEUP (DCDC_WKUP) | 6R8T-14474-AA | |
| 6 | * | * | Not Used | N/A |
