Module Controlled Functions: Overview

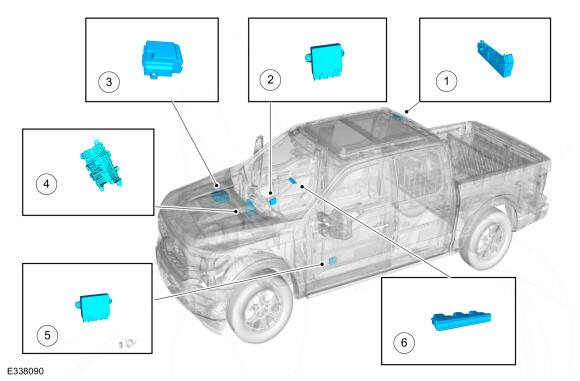

Module Controlled Functions - Component Location

GFD824364Courtesy of FORD MOTOR COMPANY
Item Description
1 RTM
2 PDM
3 BCMC
4 BCM
5 DDM
6 Auxiliary switches
