Four-Wheel Drive Systems - Vehicles With: Electronic Shift Transfer Case - System Operation and Component Description
>>
System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram
WARNING:
This page is about a different car, the 2023 Ford F-150 Lightning and 2023 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

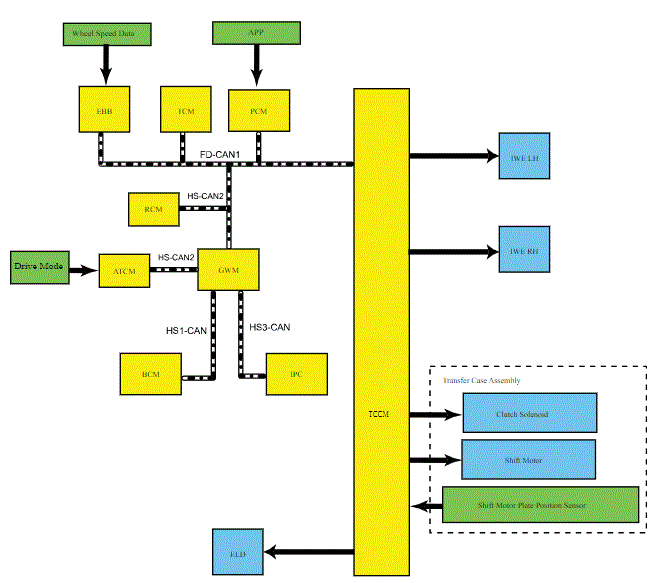

Vehicle Equipped with Gasoline Engines
Courtesy of FORD MOTOR COMPANY

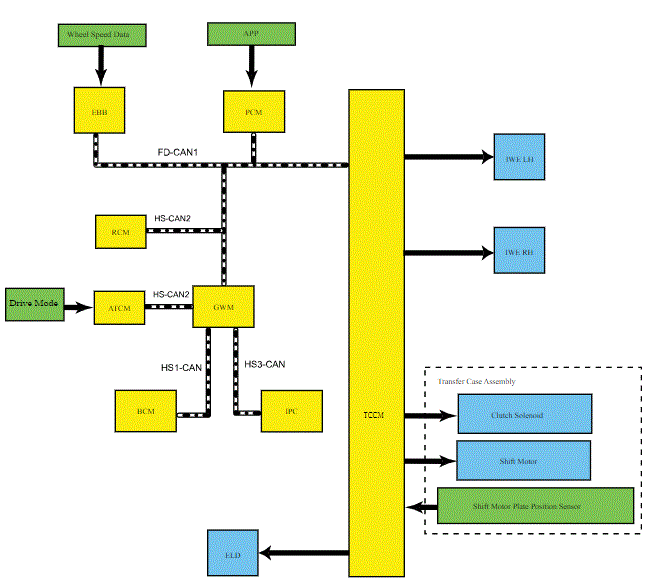

Vehicle Equipped with Diesel Engine
Courtesy of FORD MOTOR COMPANY
