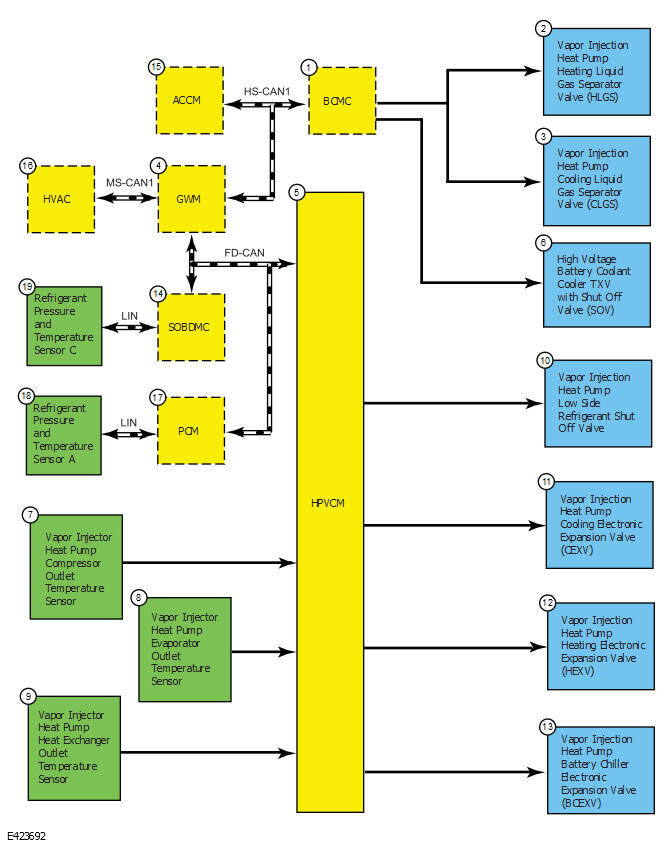

| 1 |
BCMC |
| 2 |
Vapor Injection Heat Pump Heating Liquid Gas Separator (HLGS) Valve |
| 3 |
Vapor Injection Heat Pump Cooling Liquid Gas Separator (CLGS) Valve |
| 4 |
GWM |
| 5 |
HPVCM |
| 6 |
High Voltage Battery Coolant Cooler TXV with Shut Off Valve (SOV) |
| 7 |
Vapor Injector Heat Pump Compressor Outlet Temperature Sensor |
| 8 |
Vapor Injector Heat Pump Evaporator Outlet Temperature Sensor |
| 9 |
Vapor Injector Heat Pump Heat Exchanger Outlet Temperature Sensor |
| 10 |
Vapor Injection Heat Pump Low Side Refrigerant Shut Off Valve |
| 11 |
Vapor Injection Heat Pump Cooling Electronic Expansion Valve (CEXV) |
| 12 |
Vapor Injection Heat Pump Heating Electronic Expansion Valve (HEXV) |
| 13 |
Vapor Injection Heat Pump Battery Chiller Electronic Expansion Valve (BCEXV) |
| 14 |
SOBDMC |
| 15 |
ACCM |
| 16 |
HVAC Control Module |
| 17 |
PCM |
| 18 |
Refrigerant Pressure and Temperature Sensor A |
| 19 |
Refrigerant Pressure and Temperature Sensor C |
