Transfer Case Control Module (TCCM): Removal

NOTE: Removal steps in this procedure may contain installation details.

Using the diagnostic scan tool, begin the PMI process for the TCCM following on-screen instructions.

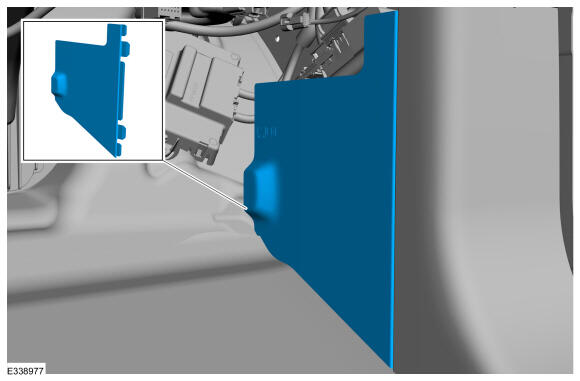

Remove the CJB cover.

Courtesy of FORD MOTOR COMPANY

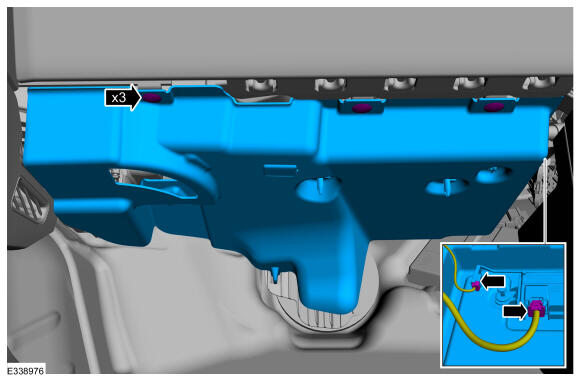

Disconnect the electrical connectors and remove the lower access panel by releasing the clips.

Courtesy of FORD MOTOR COMPANY
NOTE: The TCCM has slotted mounting holes. It is not necessary to remove the LHTCCM nut when removing the TCCM.

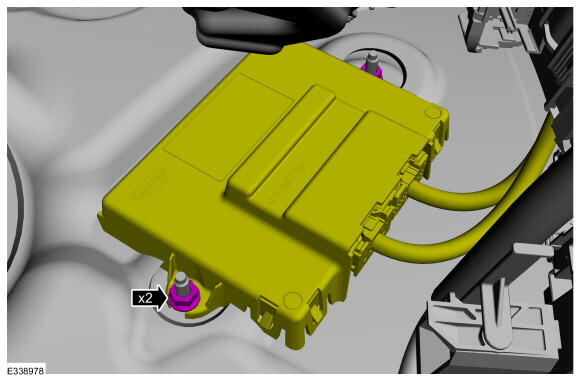

Loosen the LHTCCM nut and remove the RHTCCM nut.

Torque

: 4 Nm

Courtesy of FORD MOTOR COMPANY

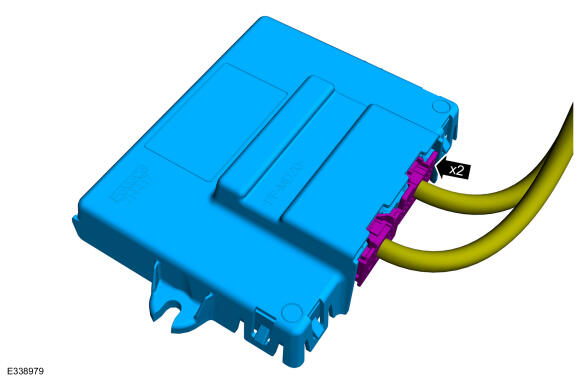

Disconnect the electrical connectors and remove the TCCM.

Courtesy of FORD MOTOR COMPANY
