Ethernet Module Communications Network - Component Location

NOTE: Authoring Template

IPMA Ethernet Cable

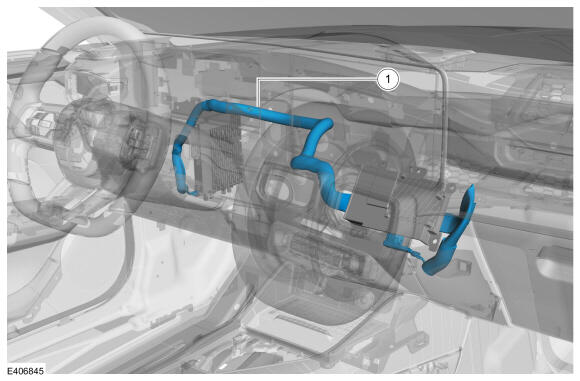

GFD866557Courtesy of FORD MOTOR COMPANY
Item Description
1 IPMA Ethernet cable routing

IPC Ethernet Cable

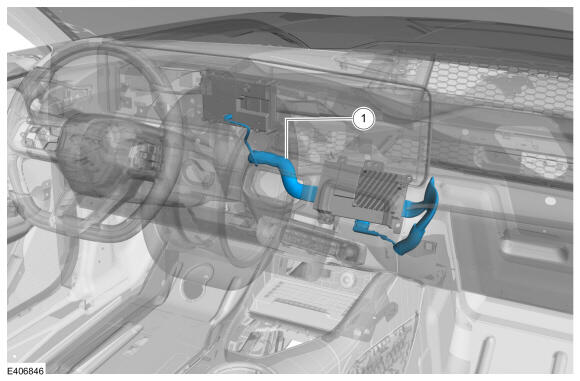

GFD866558Courtesy of FORD MOTOR COMPANY
Item Description
1 IPC Ethernet cable routing

APIM Ethernet Cable

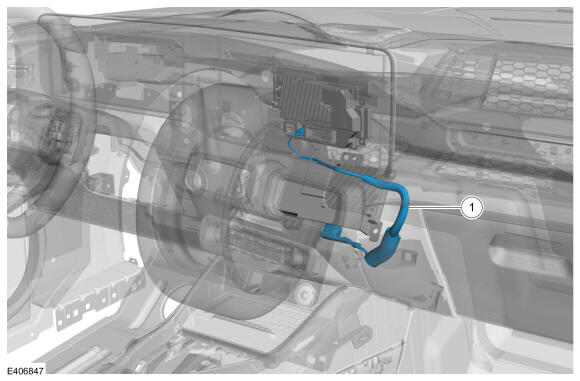

GFD866559Courtesy of FORD MOTOR COMPANY
Item Description
1 APIM Ethernet cable routing

TCU Ethernet Cable

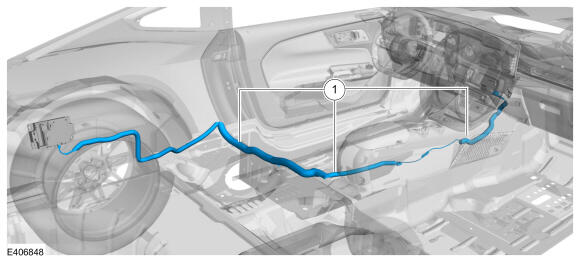

GFD866560Courtesy of FORD MOTOR COMPANY
Item Description
1 TCU Ethernet cable routing
