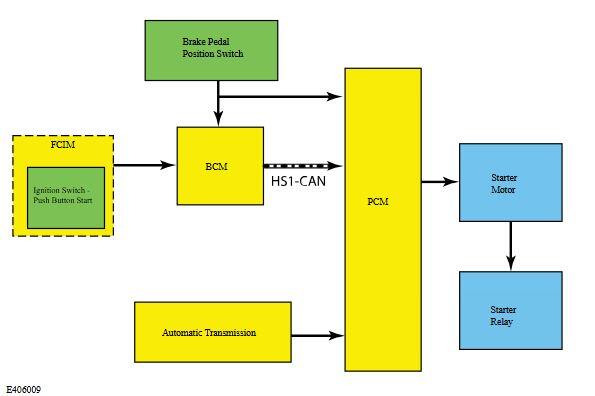

System Diagram - with Push Button Start

G00675485Courtesy of FORD MOTOR COMPANY
Item Description
1 PCM
2 Starter relay
3 Automatic transmission
4 Starter motor
5 BCM
6 BPP switch
7 FCIM
8 Ignition switch - push button start
