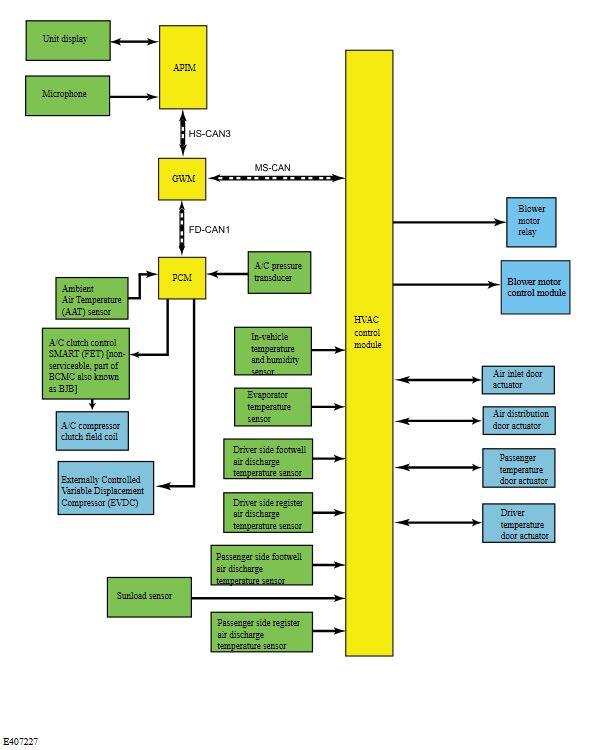

| 1 |
GWM |
| 2 |
Ambient Air Temperature (AAT) sensor |
| 3 |
A/C pressure transducer |
| 4 |
Air distribution door actuator |
| 5 |
Driver temperature door actuator |
| 6 |
Air inlet door actuator |
| 7 |
In-vehicle temperature and humidity sensor |
| 8 |
Driver side footwell air discharge temperature sensor |
| 9 |
Driver side register air discharge temperature sensor |
| 10 |
Evaporator temperature sensor |
| 11 |
APIM |
| 12 |
Sunload sensor |
| 13 |
PCM |
| 14 |
HVAC control module |
| 15 |
Passenger temperature door actuator |
| 16 |
Passenger side footwell air discharge temperature sensor |
| 17 |
Passenger side register air discharge temperature sensor |
| 18 |
Externally Controlled Variable Displacement Compressor (EVDC) |
| 19 |
A/C compressor clutch field coil |
| 20 |
A/C clutch control SMART (FET) [non- serviceable, part of BCMC also known as BJB ] |
| 21 |
Blower motor control module |
| 22 |
Blower motor relay |
| 23 |
Unit display |
| 24 |
Microphone |
