Powertrain Control Module (PCM): Removal

NOTE: This step is only necessary when installing a new component.

Download the module information to the diagnostic tool using the PMI routine. Refer to: Module Programming .

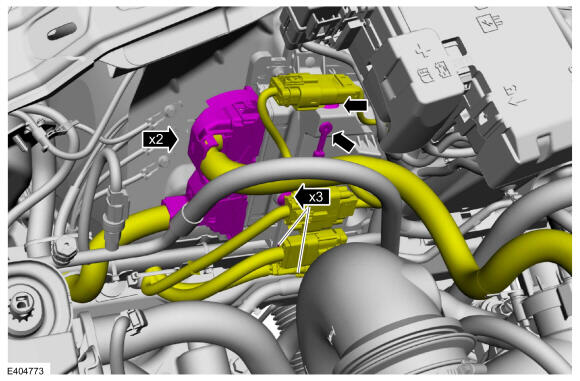

1. Remove the pushpin retainers and position the harnesses aside.
2. Disconnect the PCM electrical connectors.
Courtesy of FORD MOTOR COMPANY

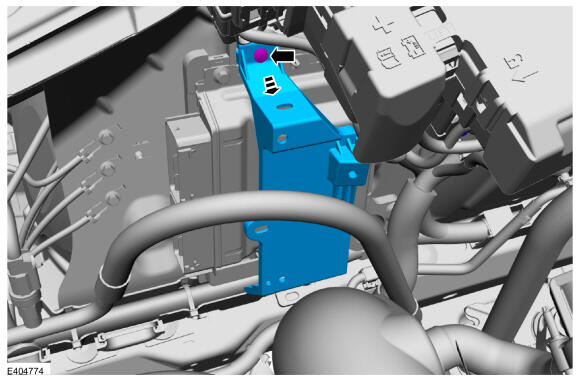

Remove the PCM bracket.

Courtesy of FORD MOTOR COMPANY

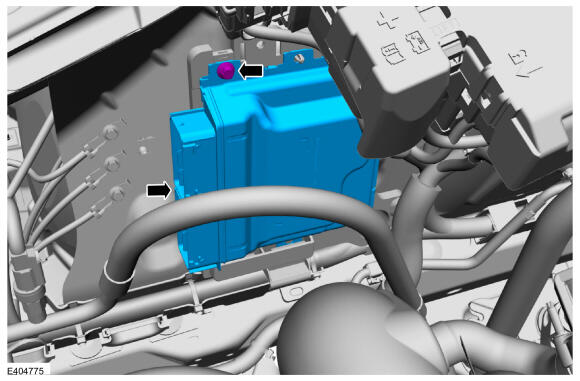

Remove the PCM.
Torque: 9.5 Nm

Courtesy of FORD MOTOR COMPANY
