System Diagram

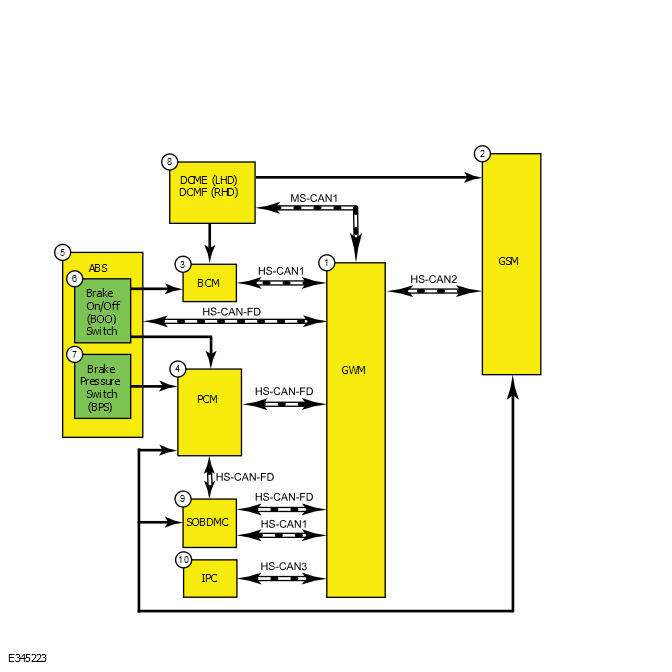

GFD870817Courtesy of FORD MOTOR COMPANY
Item Description
1 GWM
2 GSM
3 BCM
4 PCM
5 ABS
6 Brake On/Off (BOO) Switch
7 Brake Pressure Switch (BPS)
8 DCME (LHD) DCMF (RHD)
9 SOBDMC
10 IPC
