System Diagrams
| Item |
Description |
| 1 |
Air distribution door actuator |
| 2 |
Driver temperature door actuator |
| 3 |
Passenger temperature door actuator |
| 4 |
Air inlet door actuator |
| 5 |
Blower motor relay |
| 6 |
Blower motor control module |
| 7 |
Ambient air temperature sensor |
| 8 |
A/C pressure transducer |
| 9 |
Sunload sensor |
| 10 |
In-vehicle temperature and humidity sensor |
| 11 |
Evaporator temperature sensor |
| 12 |
Driver side register air discharge temperature sensor |
| 13 |
Driver side footwell air discharge temperature sensor |
| 14 |
High voltage battery coolant cooler |
| 15 |
Passenger side footwell air discharge temperature sensor |
| 16 |
Front evaporator shut off valve |
| 17 |
Passenger side register air discharge temperature sensor |
| 18 |
APIM |
| 19 |
BCM |
| 20 |
GWM |
| 21 |
SOBDMC |
| 22 |
Microphone |
| 23 |
Display Unit |
| 24 |
ACCM |
| 25 |
BCMC |
| 26 |
PCM |
| 27 |
HVAC control module |

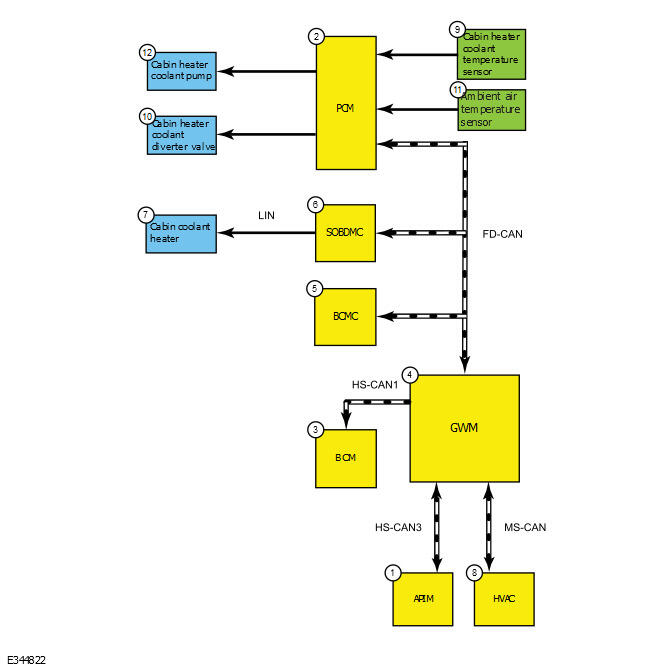

Cabin Coolant Heater System
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
APIM |
| 2 |
PCM |
| 3 |
BCM |
| 4 |
GWM |
| 5 |
BCMC |
| 6 |
SOBDMC |
| 7 |
Cabin coolant heater |
| 8 |
HVAC control module |
| 9 |
Cabin heater coolant temperature sensor |
| 10 |
Cabin heater coolant diverter valve |
| 11 |
Ambient air temperature sensor |
| 12 |
Cabin heater coolant pump |
