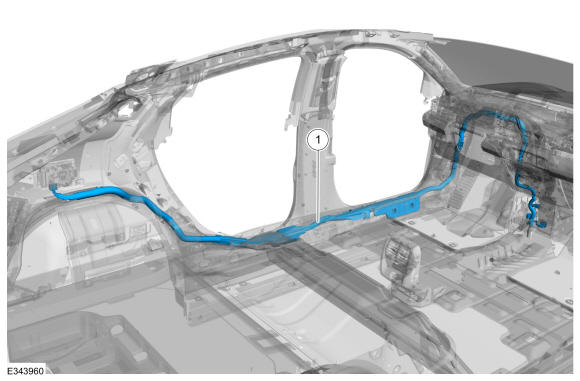

TCU Ethernet Cable routing

WARNING: This page is about a different car, the 2023 Ford Mustang Mach-E. However, it is still accessible from the selected car via links, so may be relevant.
GFD768713Courtesy of FORD MOTOR COMPANY
Item Description
1 TCU Ethernet cable routing
