Powertrain Control Module (PCM): Installation

To install, reverse the removal procedure.

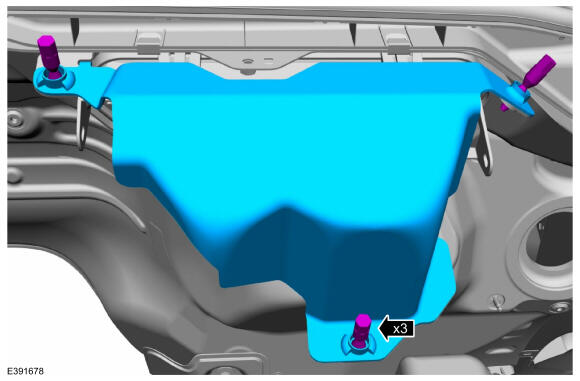

Tighten the shear bolts until the head is sheared off.
Torque: Bolt: 13.9 Nm

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

NOTE: If the Programmable Module Installation (PMI) procedure was not successful in downloading the data from the vehicles original PCM, then the oil life data of the vehicle is lost. If this occurs, and the oil life cannot be determined through service history or customer interview, it is recommended the vehicle engine oil and filter be changed and the oil change minder reset. Restore the module configuration. Carry out the module configuration restore steps of the Programmable Module Installation (PMI) procedure. For additional information

NOTE: If the Body Control Module (BCM) or the PCM (or both) is being replaced, the parameters must be reset in both modules or the vehicle will experience a Passive Anti-Theft System (PATS) no start. This will occur even if the vehicle is not equipped with PATS.

Upload the module information from the diagnostic tool using the Programmable Modules Installation routine. Refer to: Module Programming .
NOTE: This step is only necessary when installing a new component.

Carry out the Parameter Reset procedure. Refer to: Anti-Theft Key Programming - Scan Tool .
NOTE: This step is only necessary when installing a new component.

Using the scan tool, perform the Misfire Monitor Neutral Profile Correction procedure, following the on-screen instructions.
