Front Bumper: Service and Repair

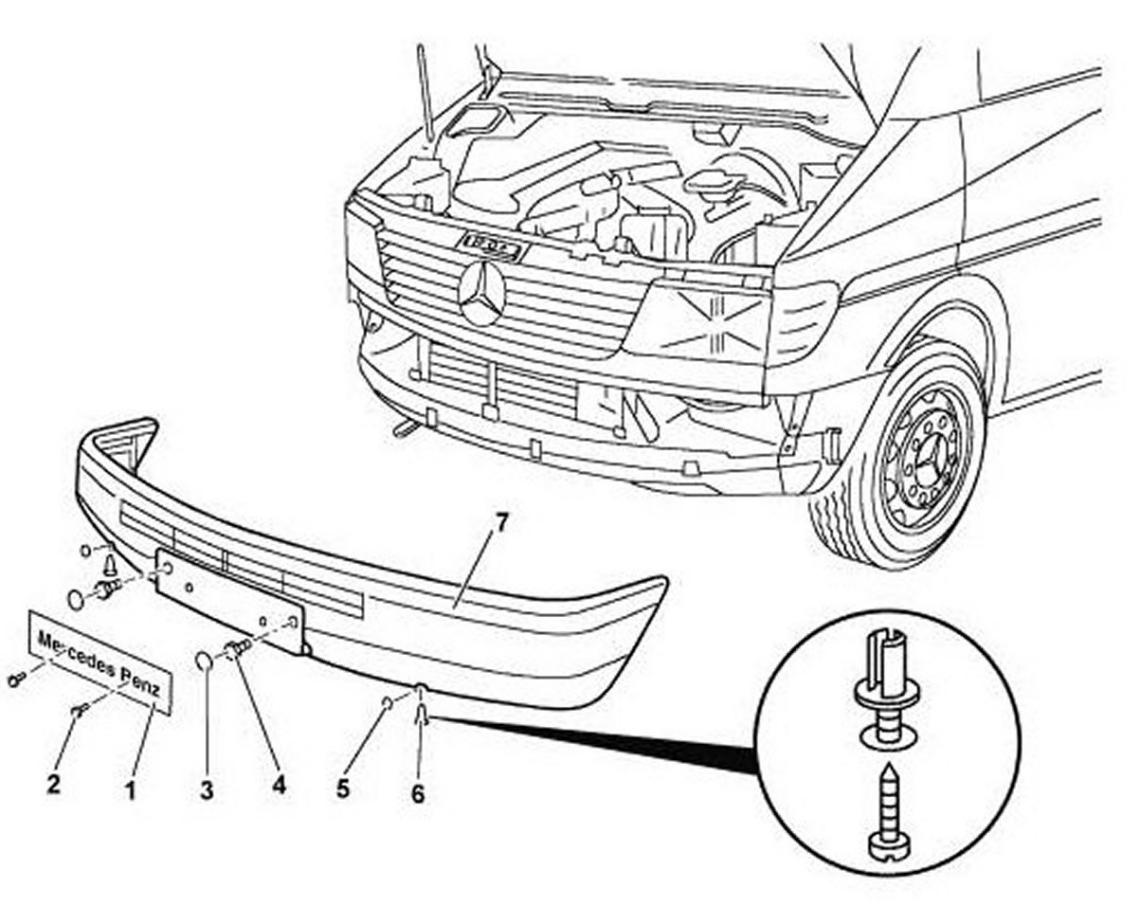

Removing and installing front bumper




1 License plate
2 Phillips screws
3 Cover
4 Collared bolts
5 Cover
6 Expanding rivet
7 Bumper

Removing, installing
1 Unscrew license plate
2 Remove covers (3) and unscrew collared bolts (4)
Installation: Replace micro-encapsulated collared bolts (M8)

3 Remove covers (5) and pull out expanding rivet (6)
Pull out rivet by screwing a sheet metal screw (M4.2x30 or longer) into the expanding rivet.
Installation: Replace expanding rivet

4 Remove bumper (7)
5 Install in the reverse order
