Side View Mirror
SIDE VIEW MIRRORREMOVAL
Driver's Side
1. Disconnect and isolate battery negative cable.

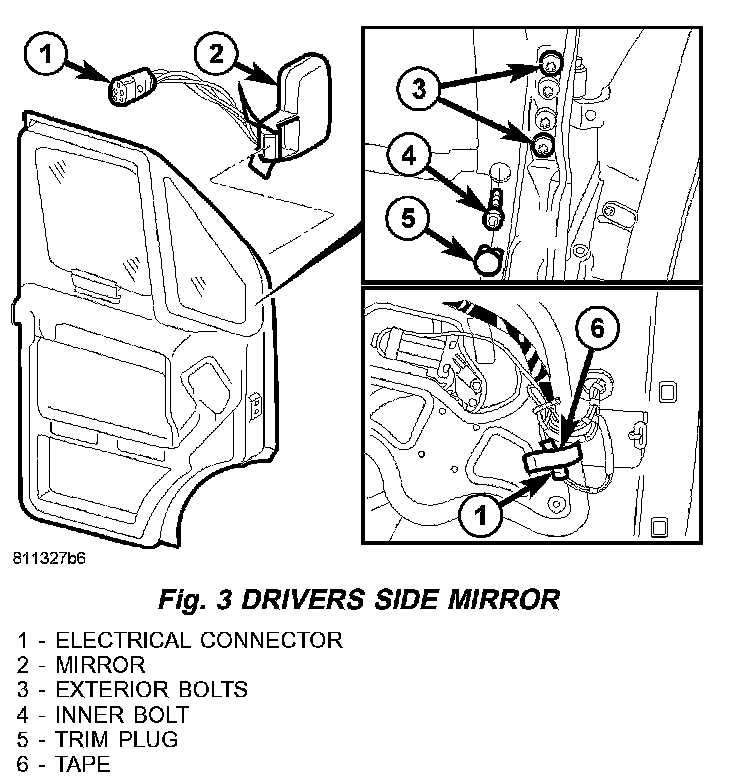

Fig. 3:
2. Remove trim plug. (Fig. 3)
NOTE: If the vehicle is not equipped with power mirrors, skip to step 5.
3. Remove trim panel.
4. Remove tape, expose electrical connector and disconnect. (Fig. 3)
5. Remove bolts and remove mirror.
6. If equipped, Pull wire harness through.
Passenger Side
1. Disconnect and isolate battery negative cable.

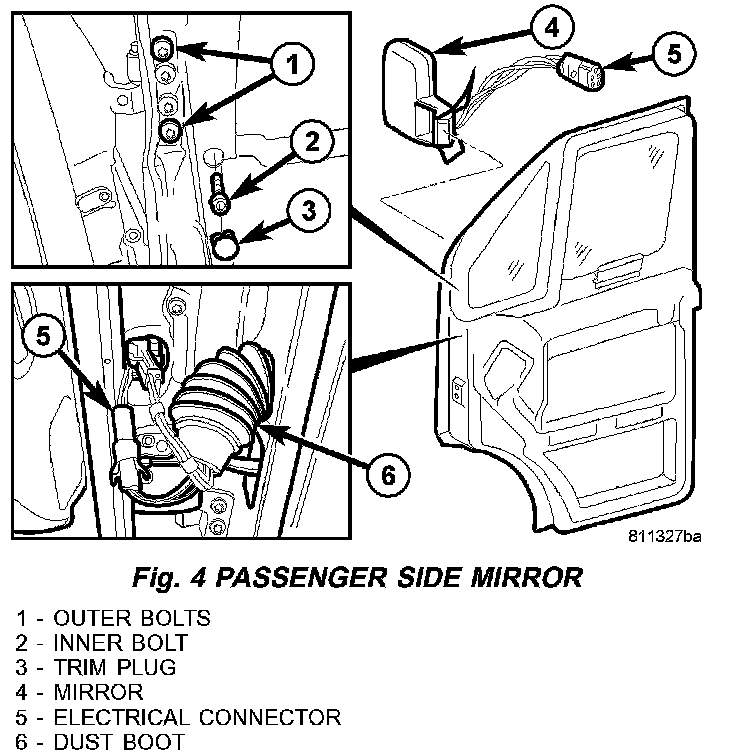

Fig. 4:
2. Remove trim plug. (Fig. 4)
NOTE: If the vehicle is not equipped with power mirrors, skip to step 5.
3. Separate dust boot from a-pillar.
4. Disconnect the electrical connector.
5. Remove bolts and remove mirror.
6. If equipped, pull wire harness through.
INSTALLATION
Driver's Side
1. If equipped, pull wire harness through door.
2. Install mirror and bolts.
3. Tighten the bolts to 25 N.m (18 ft.lbs.).
NOTE: If vehicle is not equipped with power mirrors, skip to step 6.
4. Connect electrical connector and replace tape.
5. Install trim panel.
6. Install trim plug.
7. Connect battery negative cable.
Passenger Side
1. If equipped, pull wire harness through door.
2. Install mirror and bolts.
3. Tighten the bolts to 25 N.m (18 ft.lbs.).
NOTE: If vehicle is not equipped with power mirrors, skip to step 6.
4. Connect the electrical connector.
5. Connect dust boot to a-pillar.
6. Install trim plug.
7. Connect battery negative cable.
