A/C Compressor Drive Belt

A/C Compressor Drive Belt

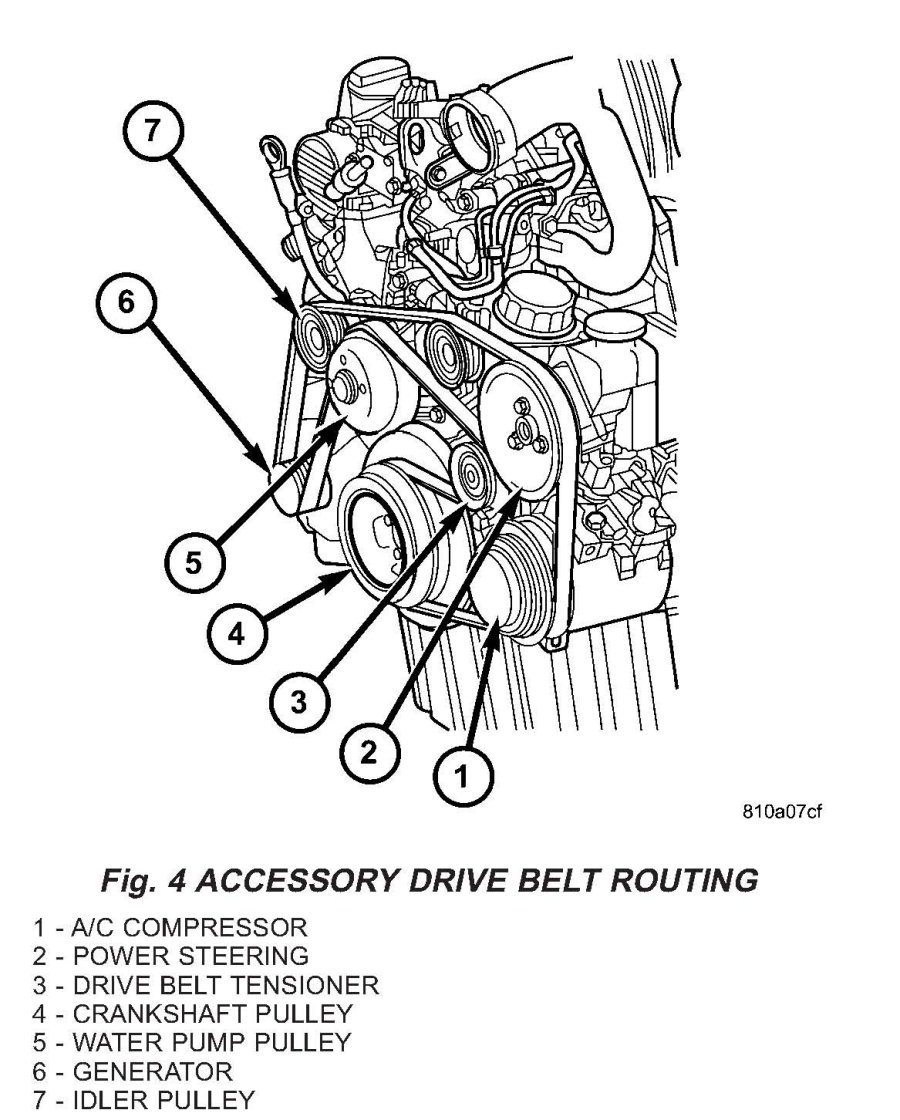

Accessory Drive Belt Routing:

Removal

1. Loosen tension adjuster.
2. Remove A/C compressor drive belt.

Installation

1. Position A/C compressor drive belt over crankshaft pulley and A/C compressor pulley.
2. Tighten drive belt tensioner.
