REMOVAL
1. Disconnect and isolate battery negative cable
2. Remove door trim panel

Glass Support:

3. Using wood wedge, tape or equivalent, secure glass in the up position.

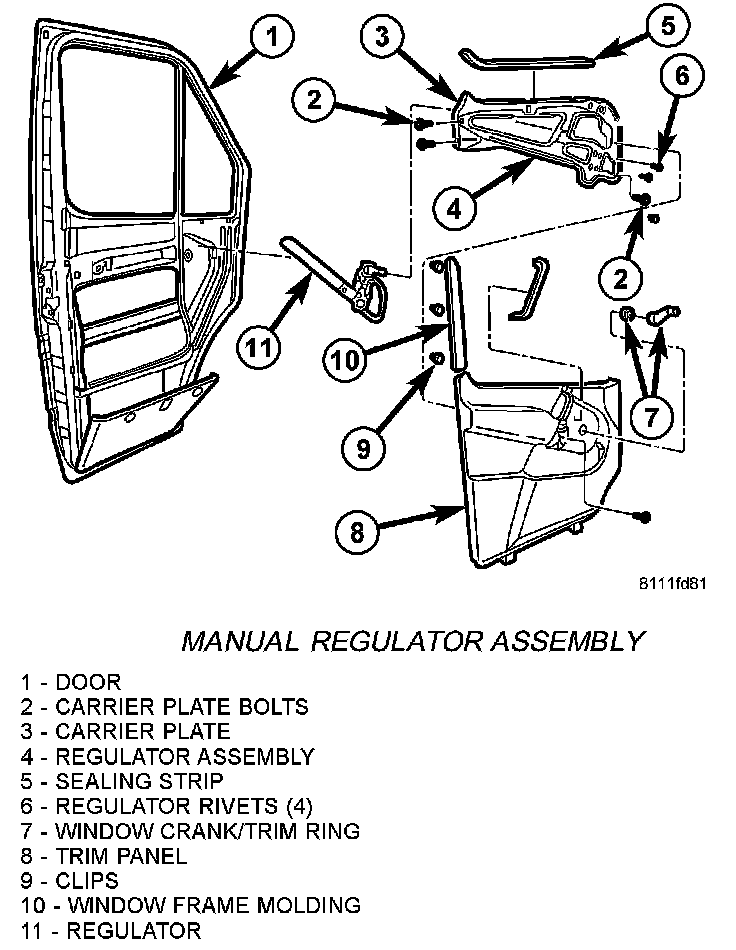

Manual Regulator Assembly:

4. Remove carrier plate bolts.

Lift Arm:

5. Disengage lift arm from glass guide rail and remove regulator assembly.

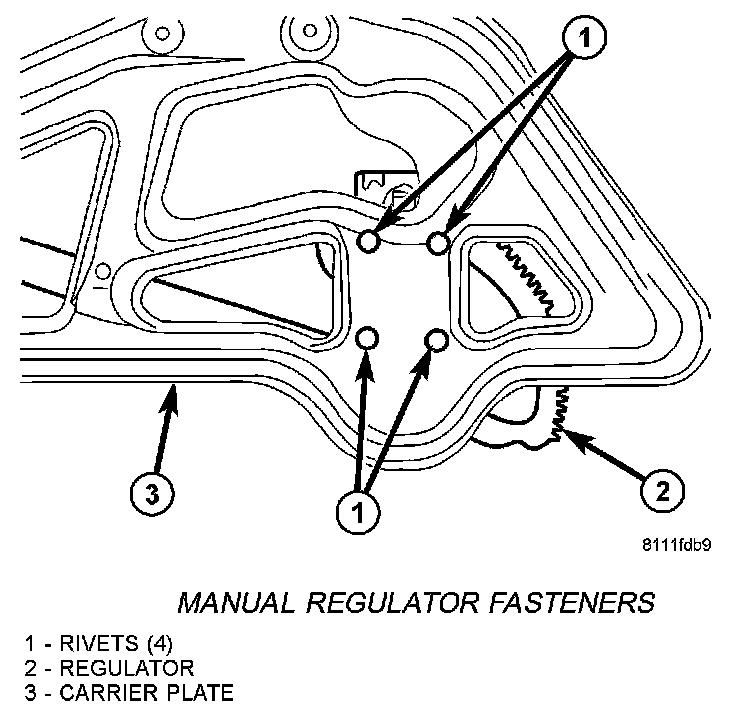

Manual Regulator Fasteners:

6. Remove four rivets attaching regulator to carrier plate and remove regulator.

INSTALLATION
1. Install regulator onto carrier plate and install new rivets.
2. Install regulator lift arm into glass guide rail and install regulator assembly.
3. Install carrier bolts and tighten to 10 Nm (89 in. lbs.).
4. Remove glass support.
5. Connect battery negative cable.
6. Verify correct window operation.
7. Install trim panel.
