Antitheft and Alarm Systems

PLEASE NOTE: Some diagrams may appear to be missing because of gaps in the number sequences. These "gaps" are actually for diagrams that do not apply to the vehicle model selected.

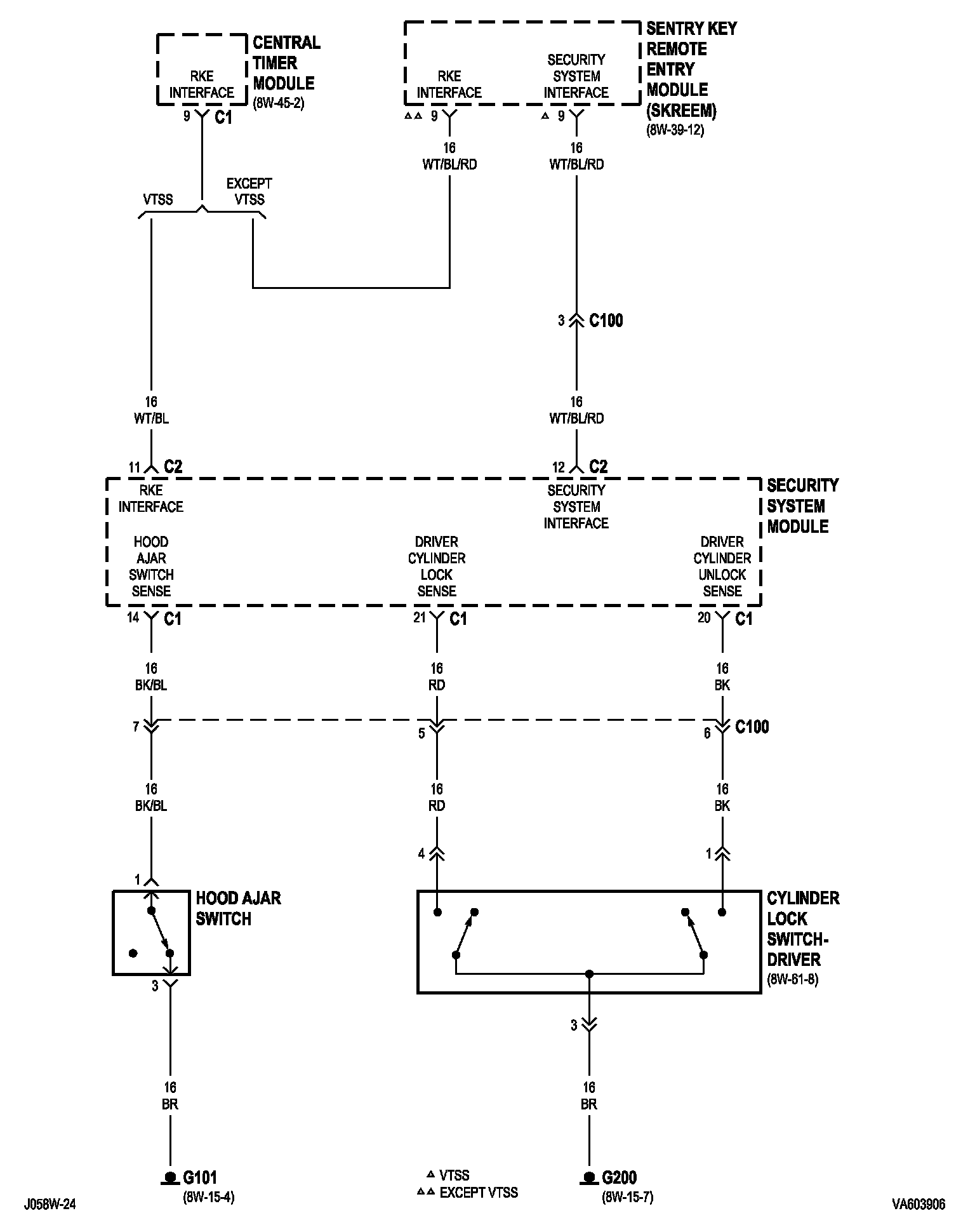

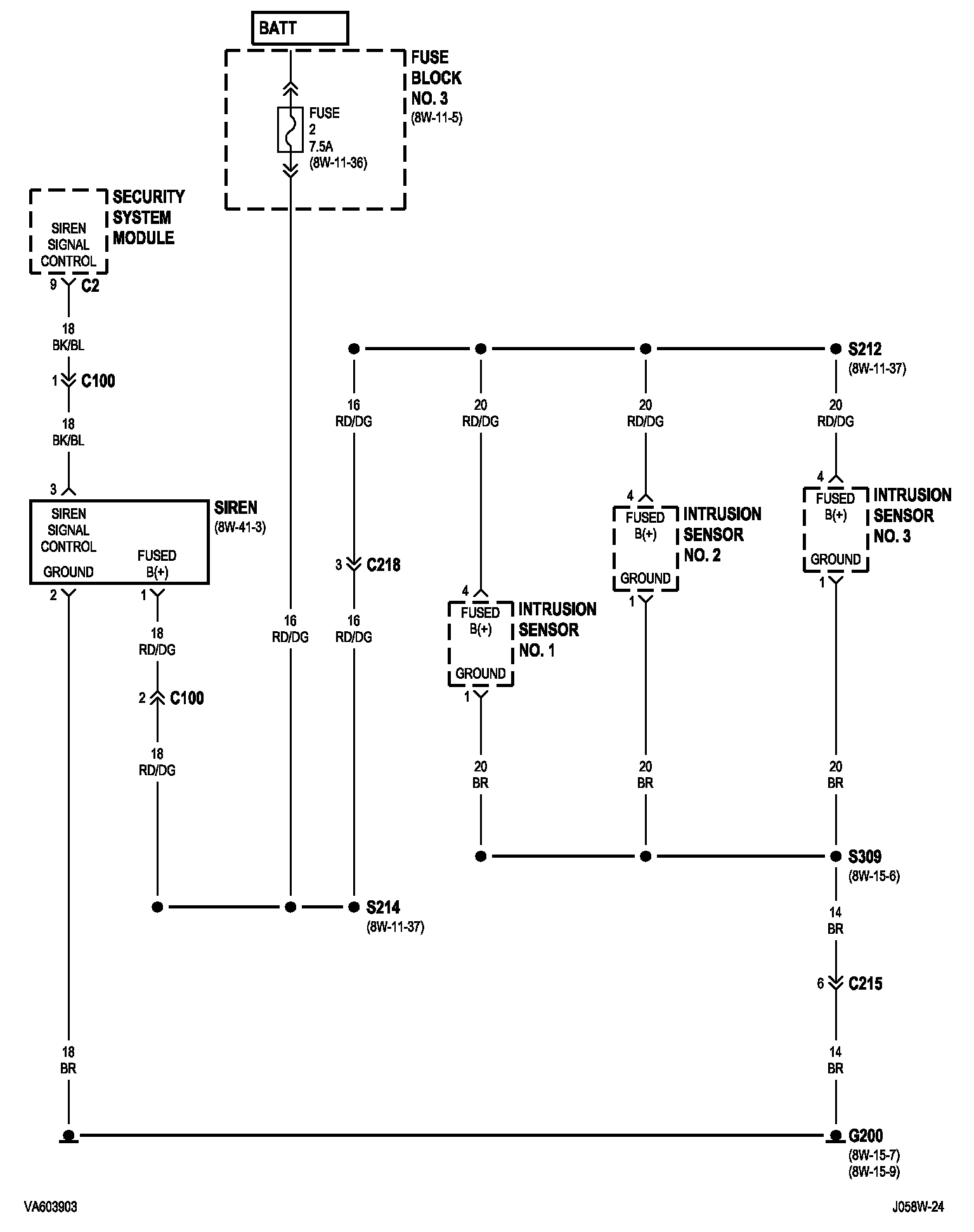

8w-39-2:

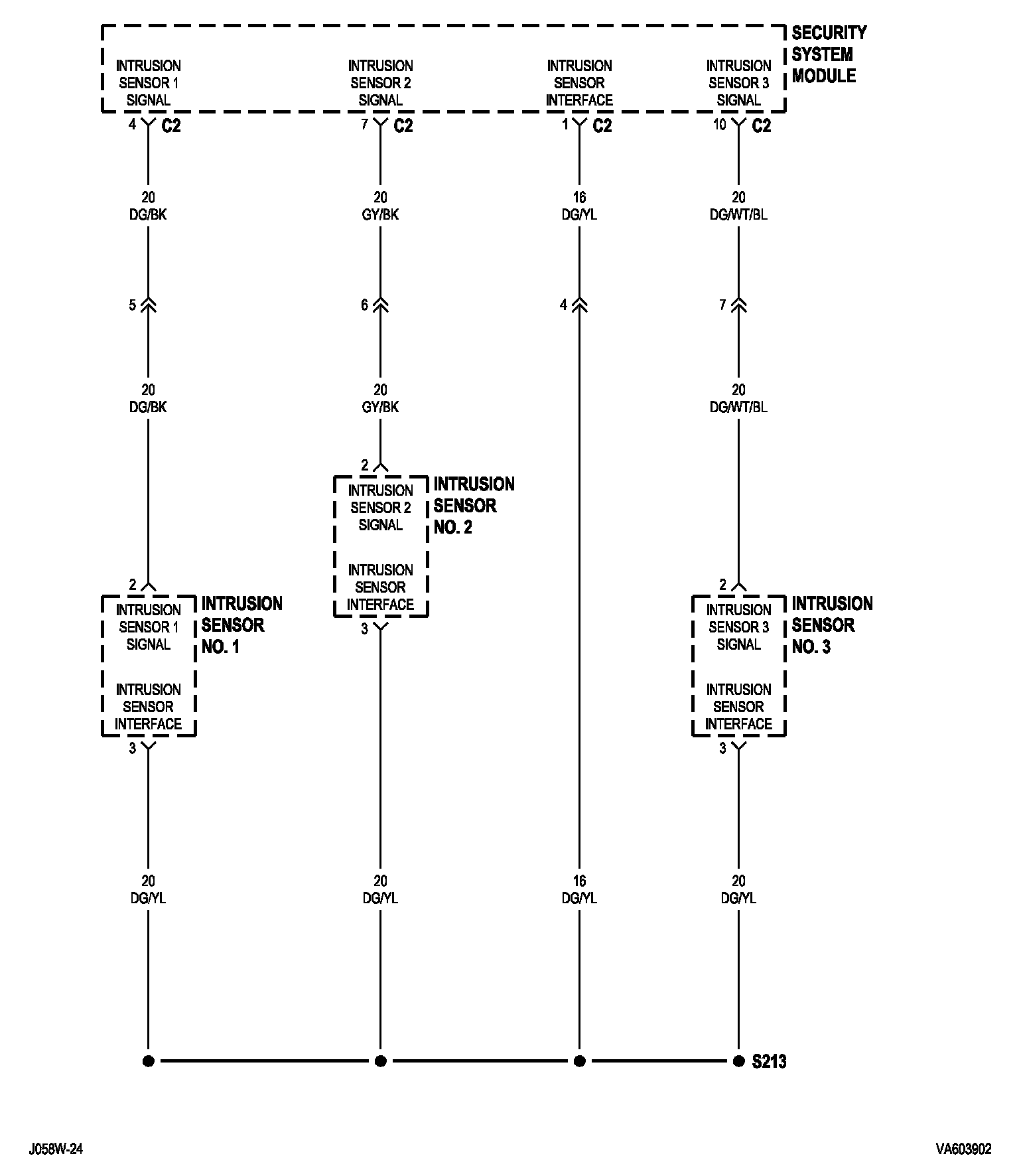

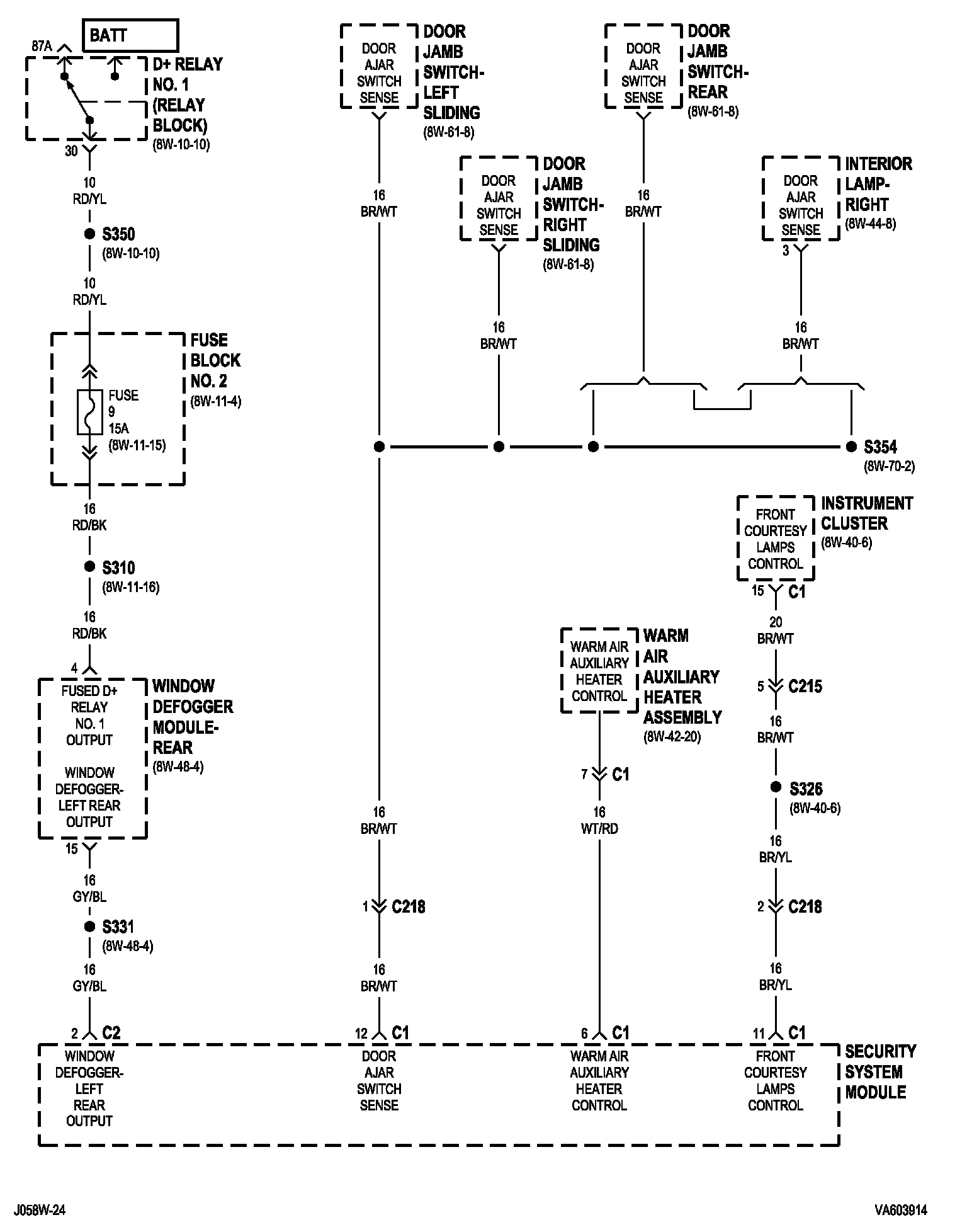

8w-39-3:

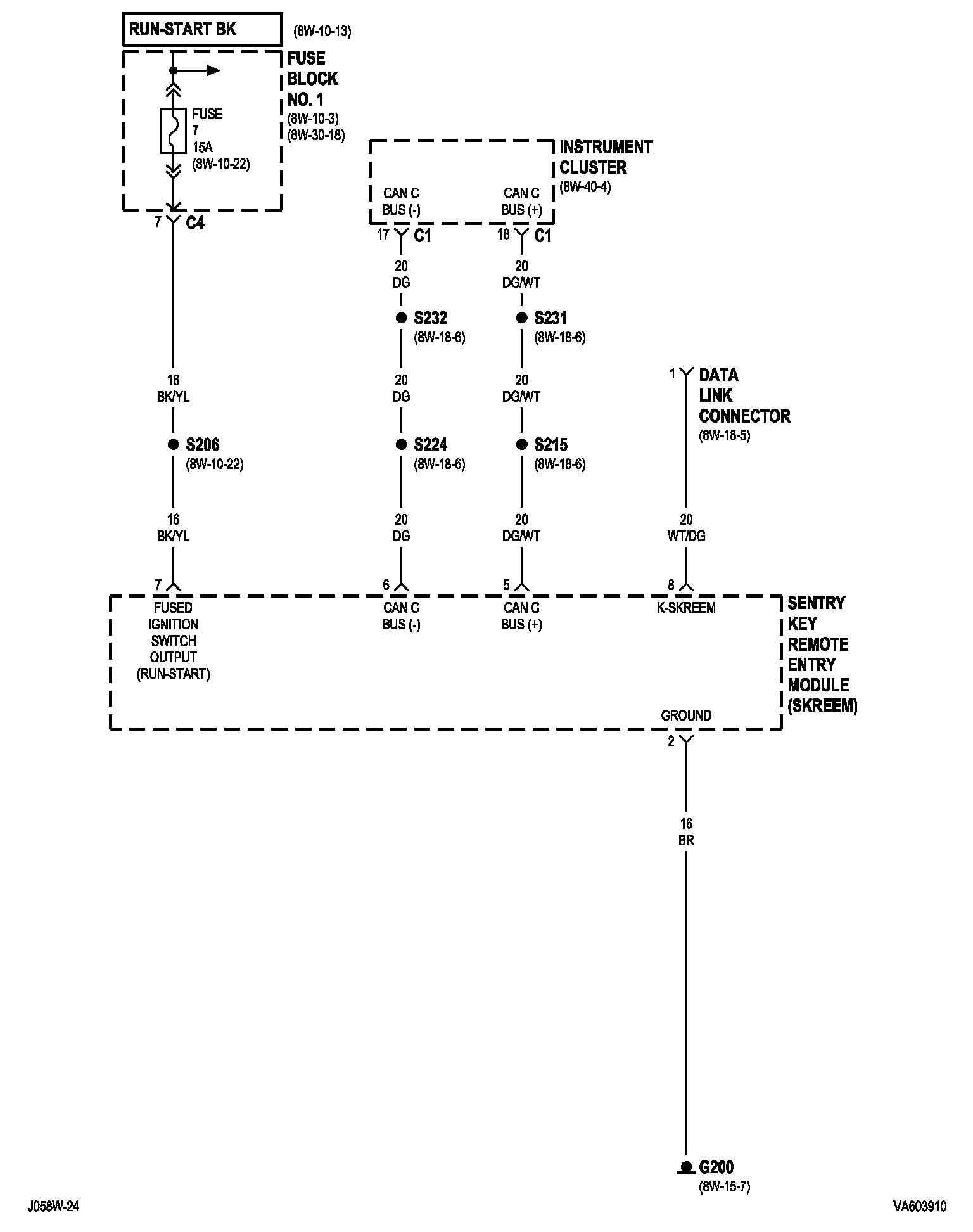

8w-39-4:

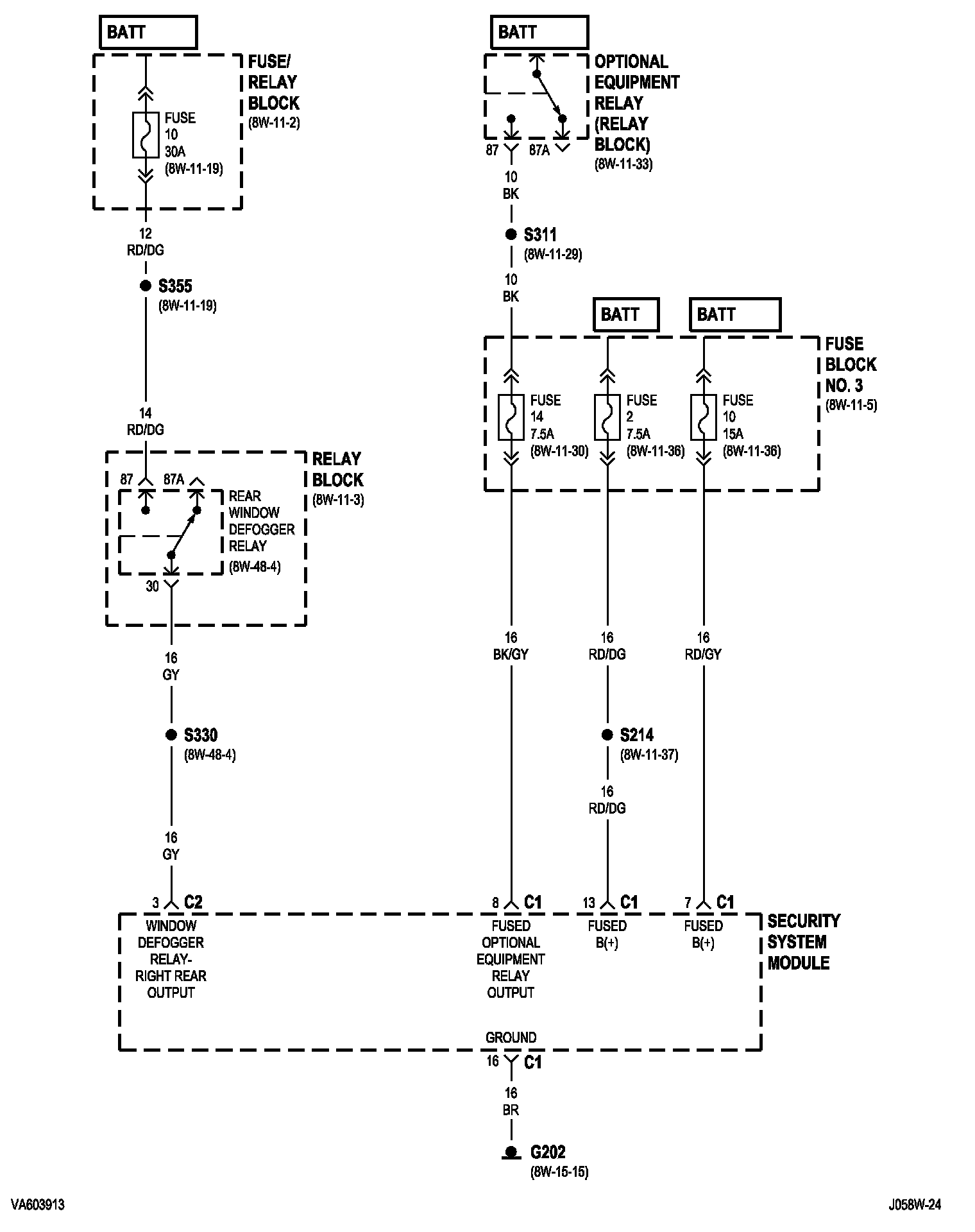

8w-39-5:

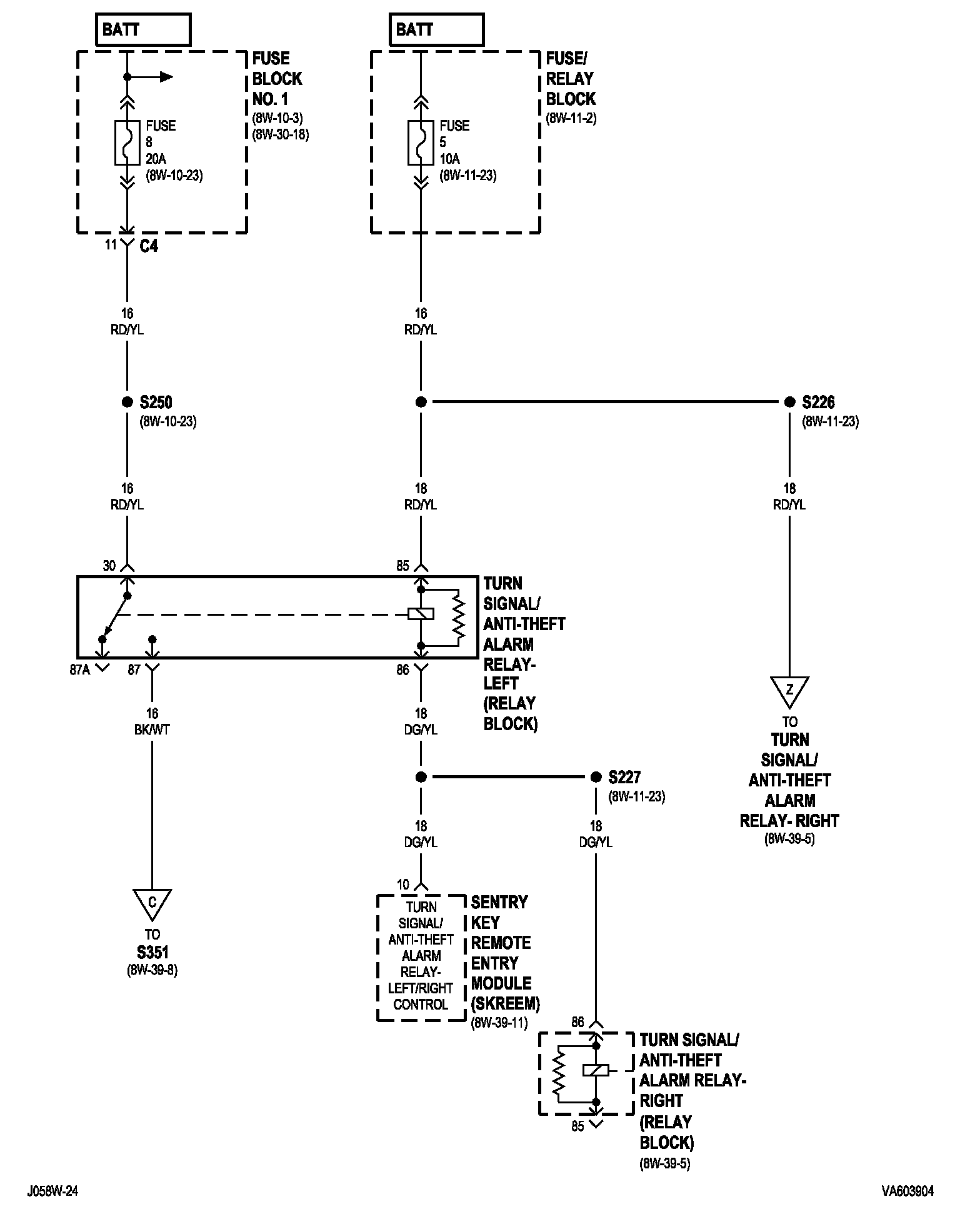

8w-39-6:

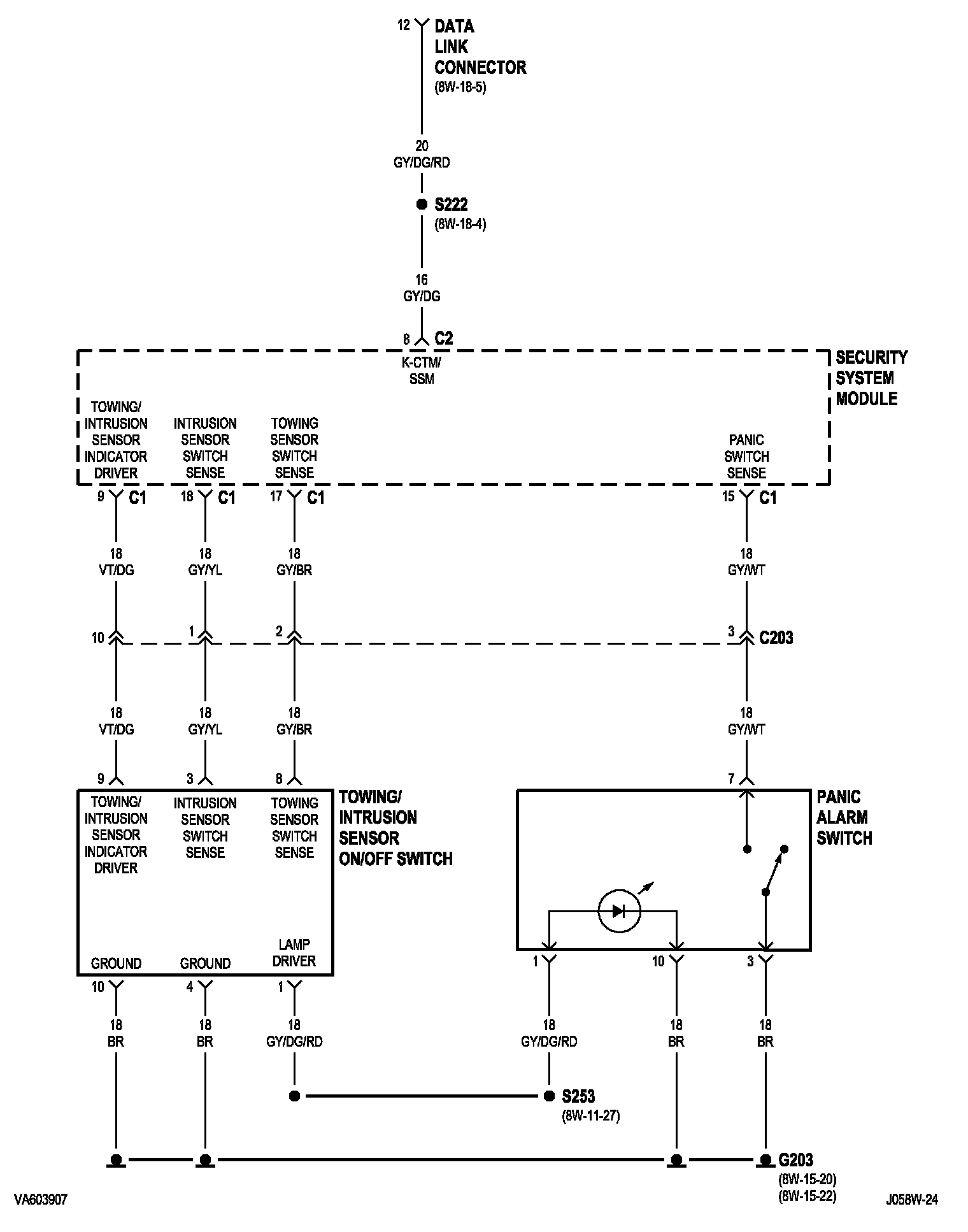

8w-39-7:

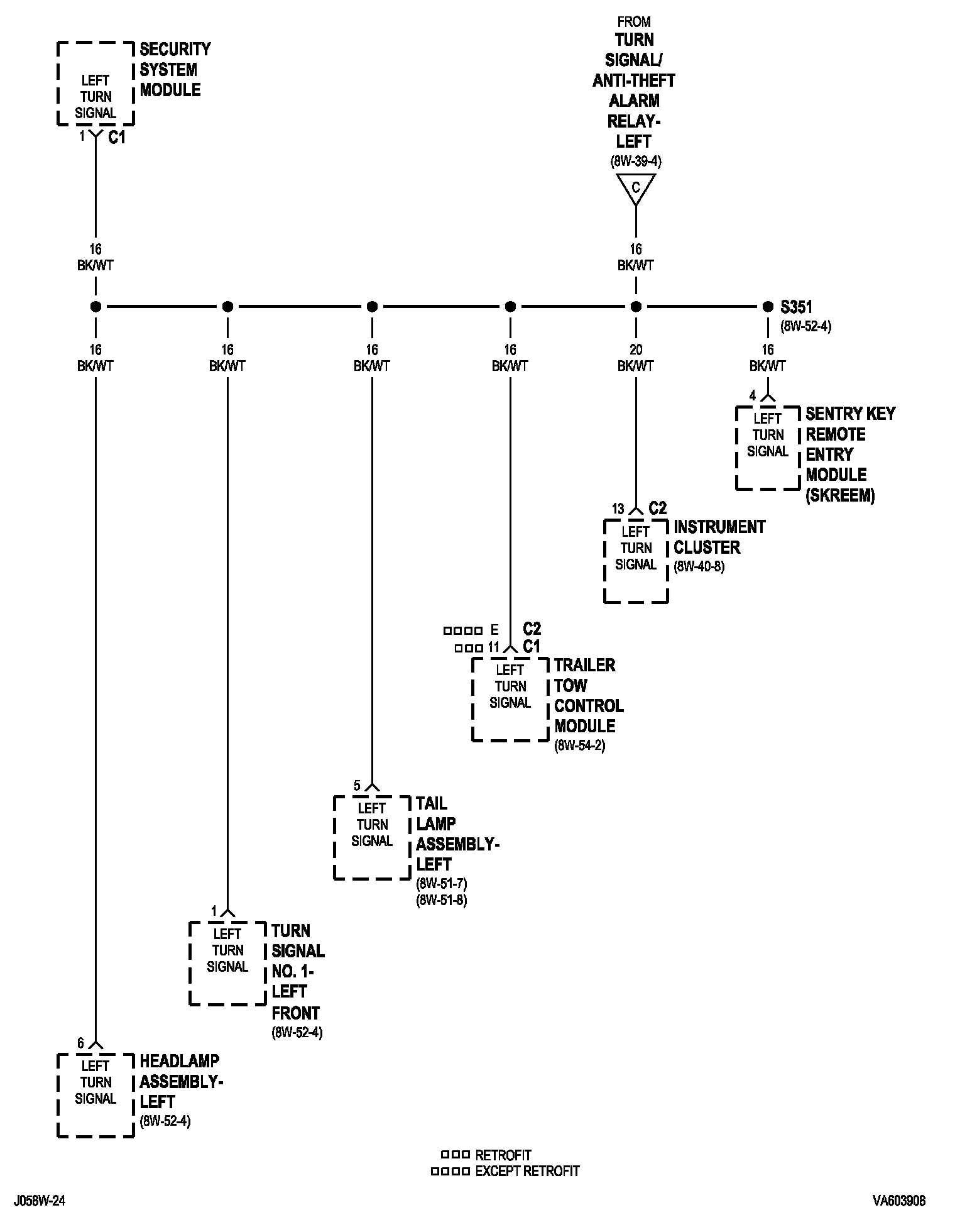

8w-39-8:

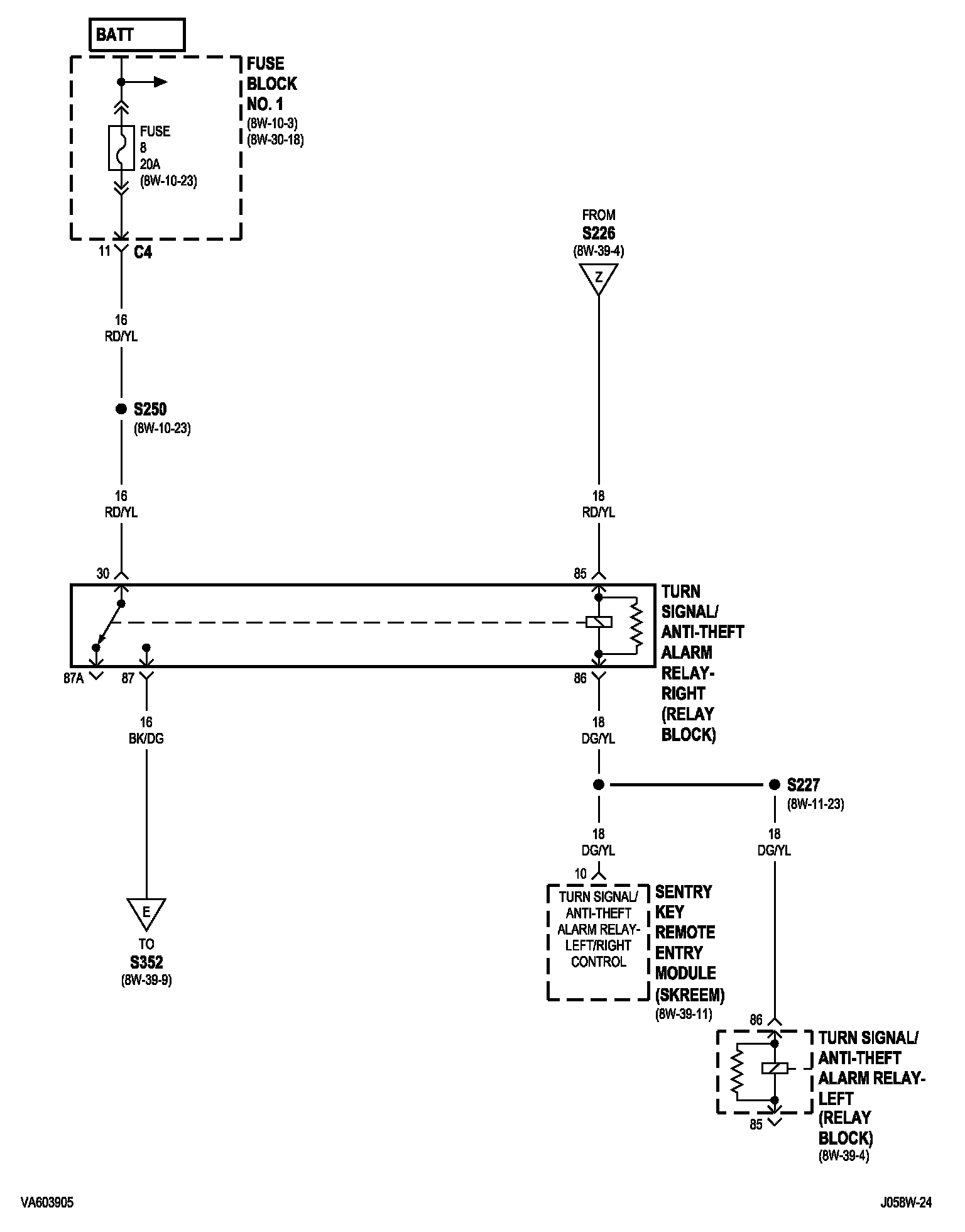

8w-39-9:

8w-39-10:

8w-39-11:

8w-39-12:

8w-39-13:

8w-39-14:

Other Diagrams: Other diagrams referred to by number (i.e 8W-70-2, etc.) within these diagrams can be found at the vehicle level under Diagrams by Number. Diagrams By Number
