Installation






INSTALLATION

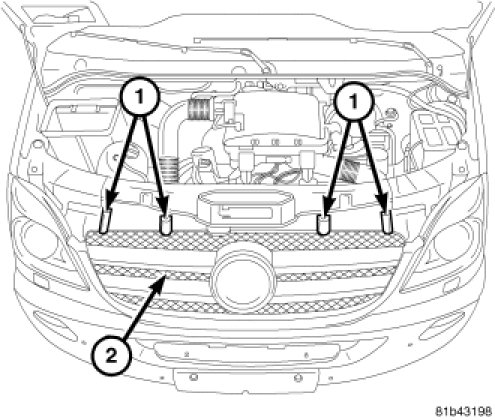

Grille




1. Install the front grille (2) downward and seat fully.
2. Install the bolts (1).

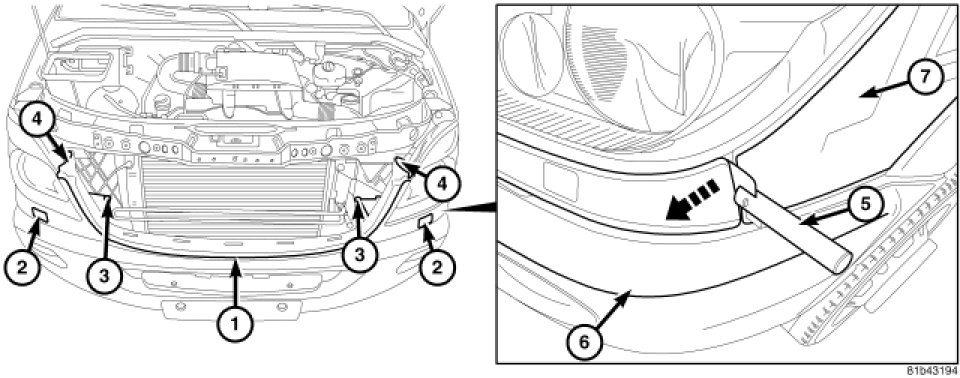

Grille Covering




1. Install the front cover (1).
2. Clip front cover (1) to the bumper (6).
3. Clip the front cover (1) to the fenders (7) on both sides.
4. Seat covers (2) fully.
5. Install bolts (3, 4).
6. Install the front grille.
