Injector-Fuel 3

Component ID: 208
Component : INJECTOR-FUEL 3

Connector:
Name : INJECTOR-FUEL 3
Color : BLACK
# of pins : 2

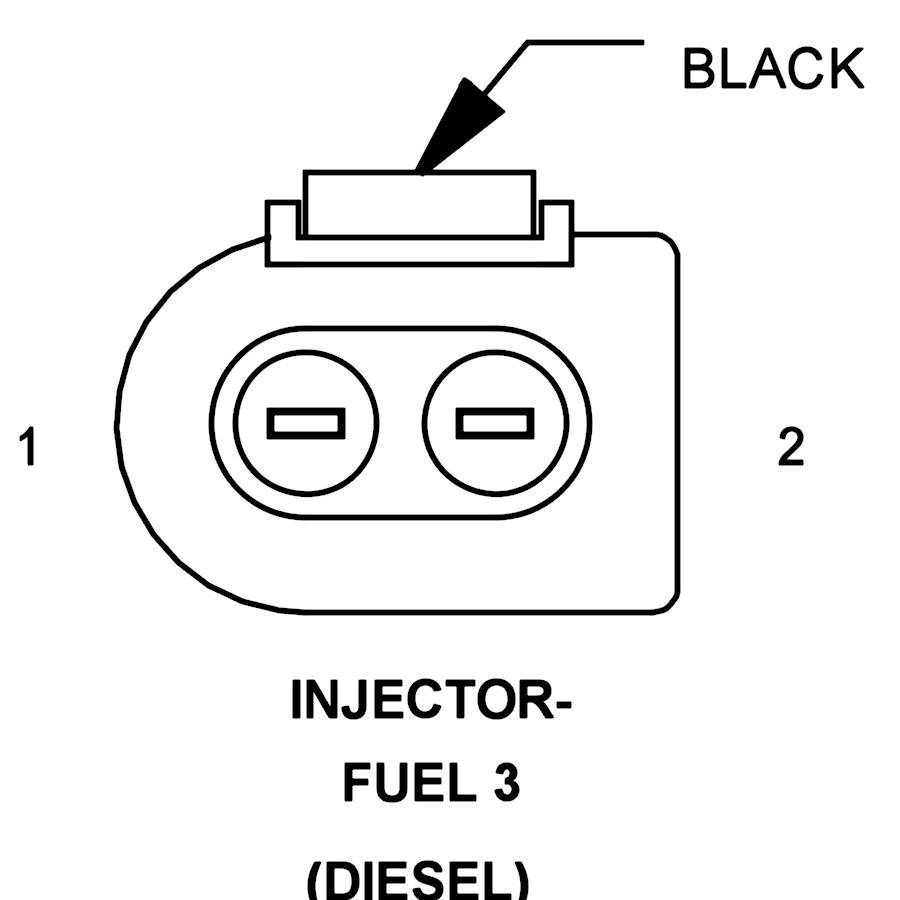

Qualifier : (DIESEL)




Pin Description Circuit
1 FUEL INJECTOR 3 LOW-SIDE CONTROL 1350 14YL
2 FUEL INJECTOR 3 HIGH-SIDE CONTROL 1351 14BK/YL



Connector:
Name : INJECTOR-FUEL 3
Color : BLACK
# of pins : 2

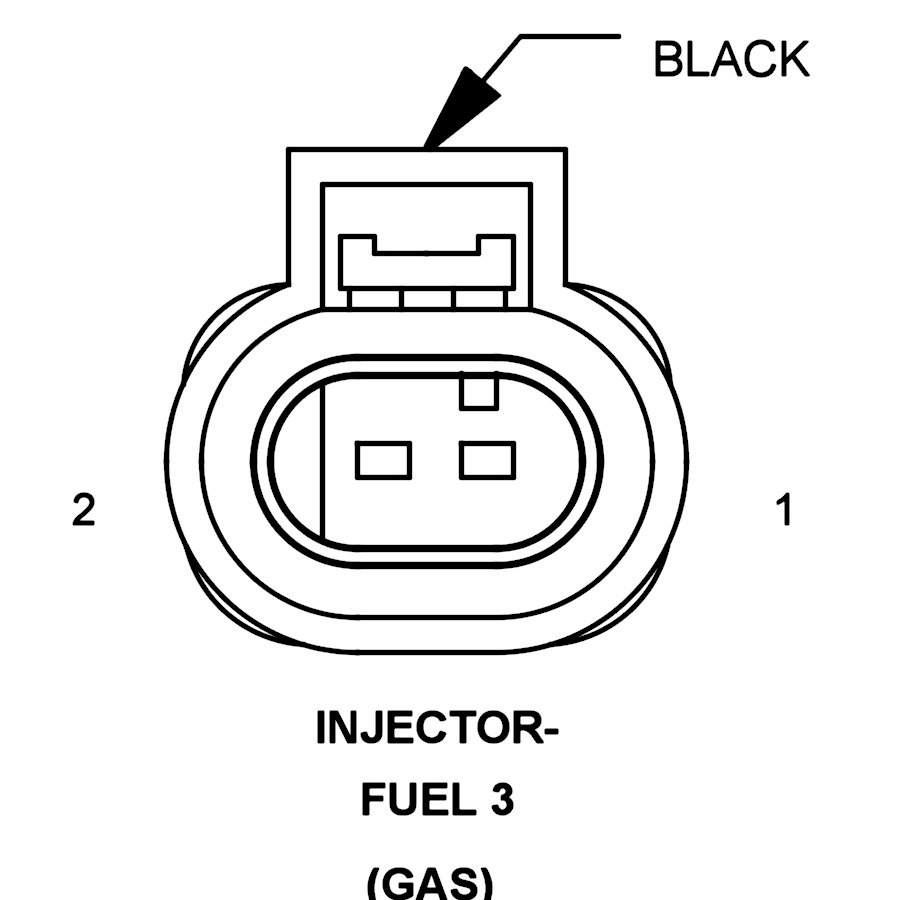

Qualifier : (GAS)




Pin Description Circuit
1 FUSED MAIN RELAY OUTPUT U795Q 18BK/WT
2 INJECTOR 3 CONTROL 1569 18BK/YL
