Injector-Fuel 5

Component ID: 210
Component : INJECTOR-FUEL 5

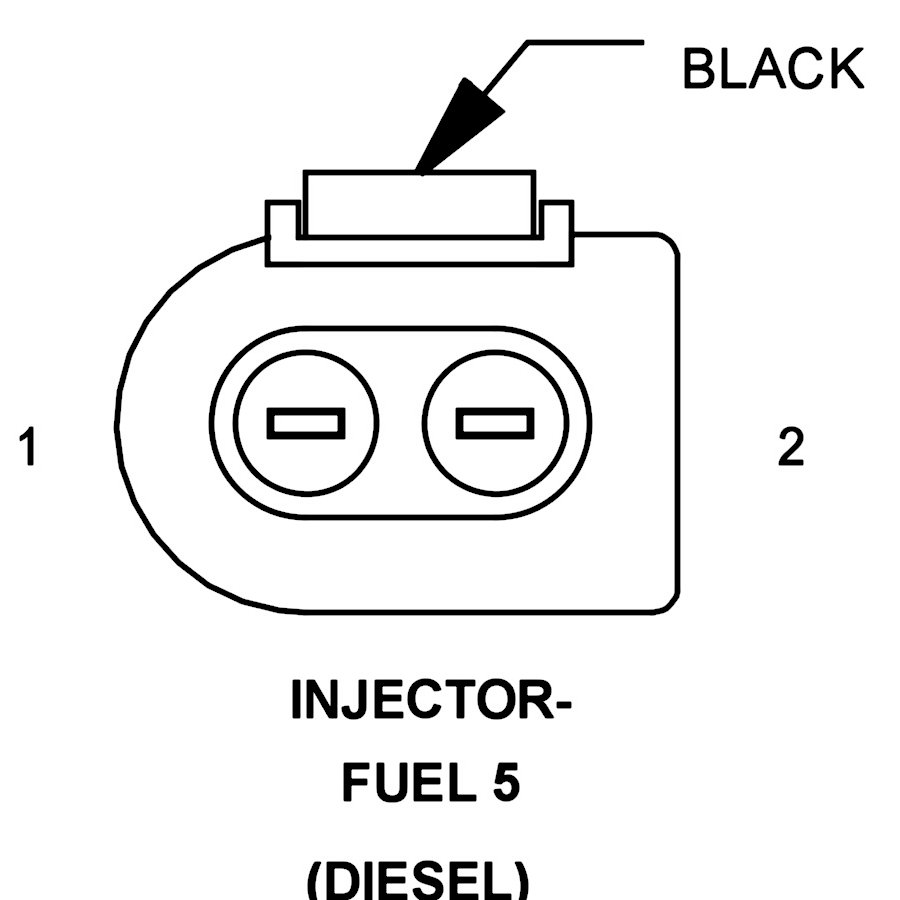

Connector:
Name : INJECTOR-FUEL 5
Color : BLACK
# of pins : 2
Qualifier : (DIESEL)




Pin Description Circuit
1 FUEL INJECTOR 5 LOW-SIDE CONTROL 1343 14VT
2 FUEL INJECTOR 5 HIGH-SIDE CONTROL 1342 14BK/VT

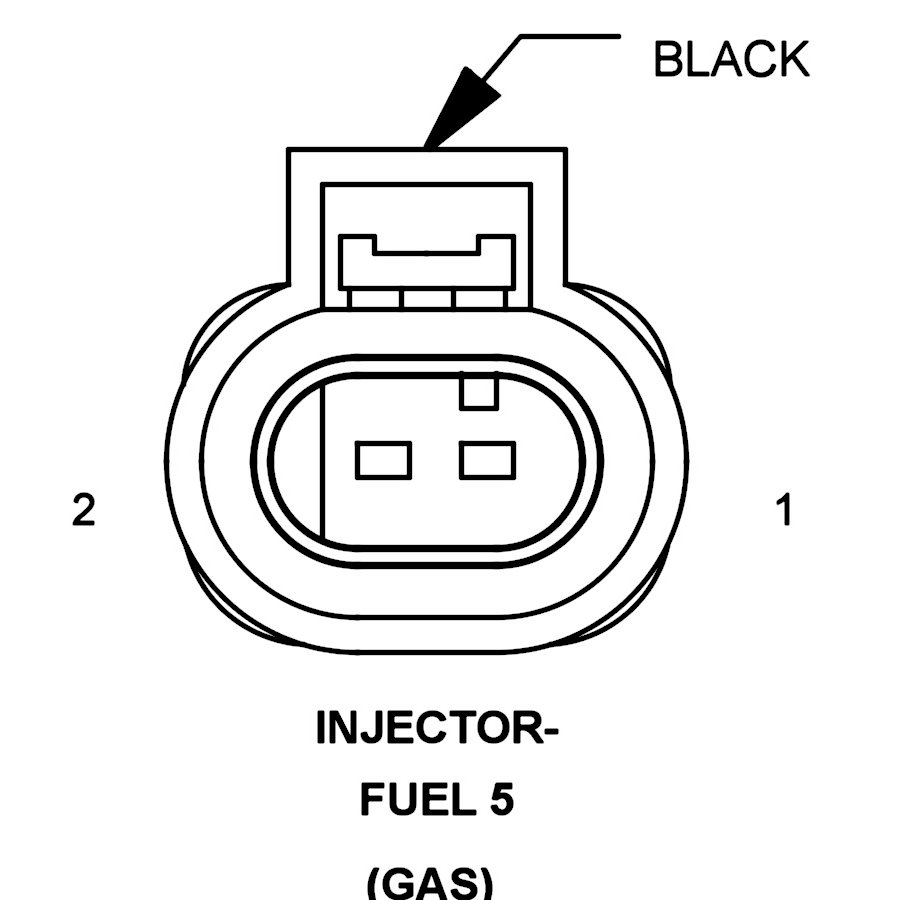

Connector:
Name : INJECTOR-FUEL 5
Color : BLACK
# of pins : 2
Qualifier : (GAS)




Pin Description Circuit
1 FUSED MAIN RELAY OUTPUT U794L 18BK/GY
2 INJECTOR 5 CONTROL 1573 18BK/VT
