Power Steering Valve

Component ID: 562

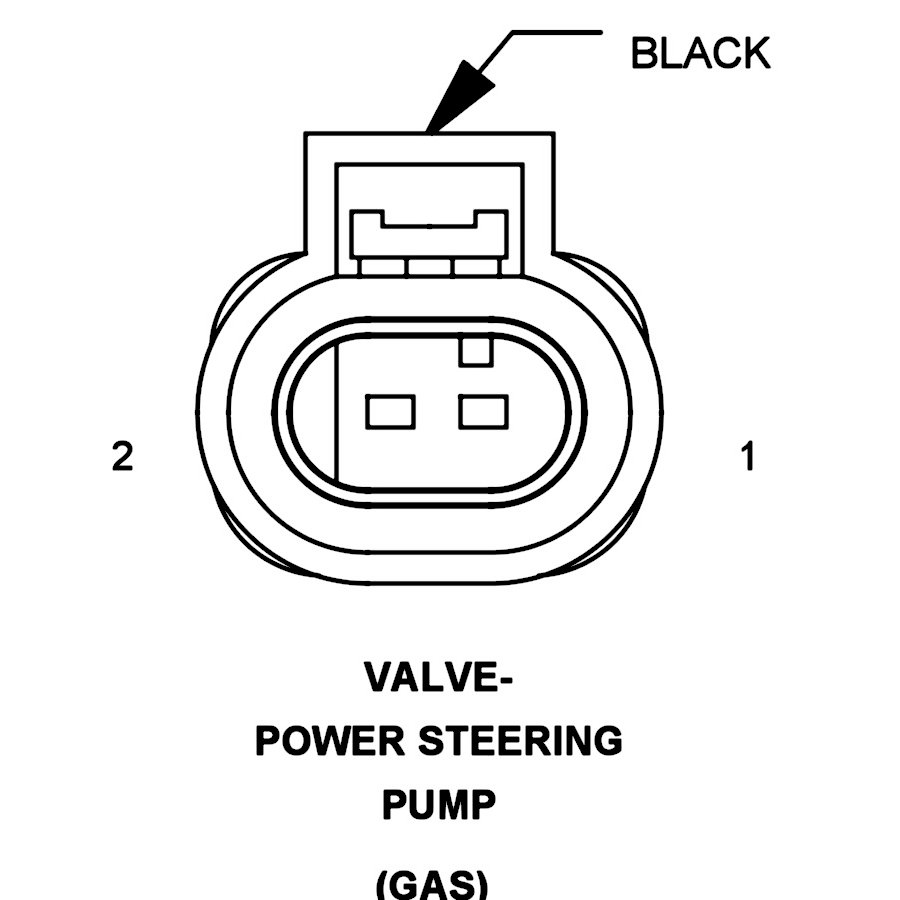

Component : VALVE-POWER STEERING PUMP

Connector:
Name : VALVE-POWER STEERING PUMP
Color : BLACK
# of pins : 2
Qualifier : (GAS)




Pin Description Circuit
1 MAIN RELAY OUTPUT U796 18BK/YL
2 POWER STEERING ECO CONTROL 1653 18WT/BK
