Turbo Boost Sensor

Component ID: 441

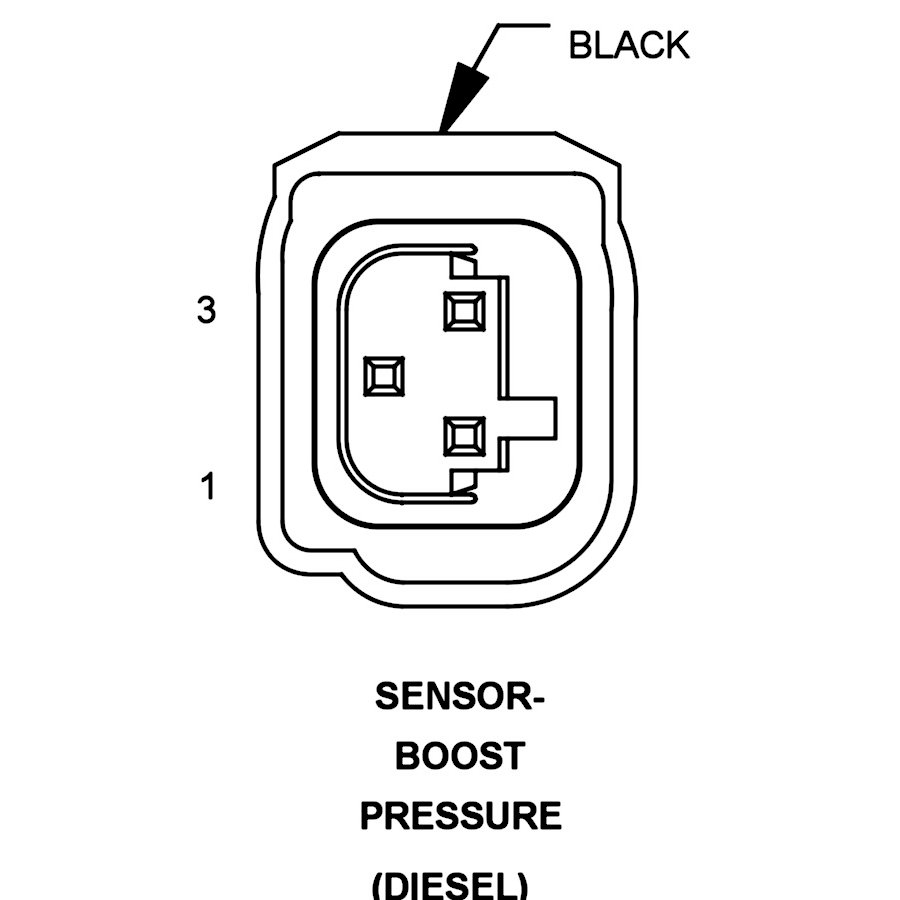

Component : SENSOR-BOOST PRESSURE

Connector:
Name : SENSOR-BOOST PRESSURE
Color : BLACK
# of pins : 3
Qualifier : (DIESEL)




Pin Description Circuit
1 BOOST PRESSURE SENSOR GROUND 1326 20BR
2 BOOST PRESSURE SENSOR SIGNAL 1327 20YL/DG
3 BOOST PRESSURE SENSOR 5 VOLT SUPPLY 1240 20PK/YL
