Sensor-Manifold Swirl Valve Position 1

Component ID: 475

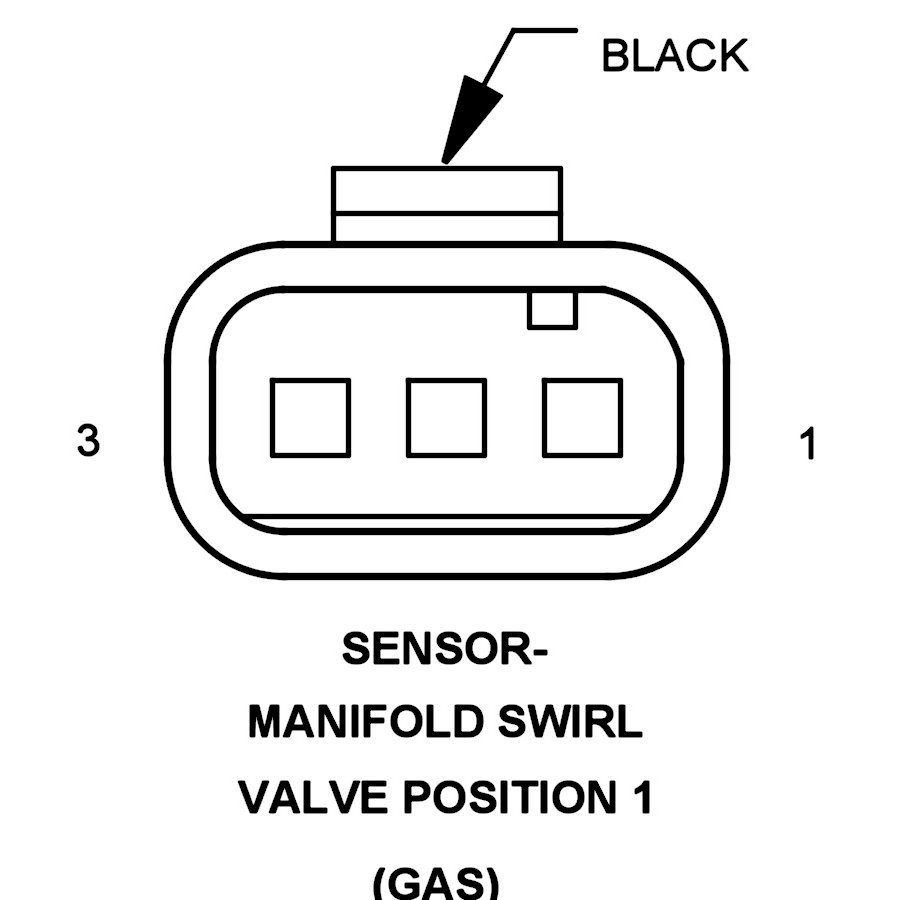

Component : SENSOR-MANIFOLD SWIRL VALVE POSITION 1

Connector:
Name : SENSOR-MANIFOLD SWIRL VALVE POSITION 1
Color : BLACK
# of pins : 3
Qualifier : (GAS)




Pin Description Circuit
1 5 VOLT SUPPLY U779 20PK/DB
2 SENSOR GROUND U6101 20BR/DG
3 MANIFOLD SWIRL POSITION 1 SIGNAL 1601 20DG/VT
