Sensor-Manifold Swirl Valve Position 2

Component ID: 476

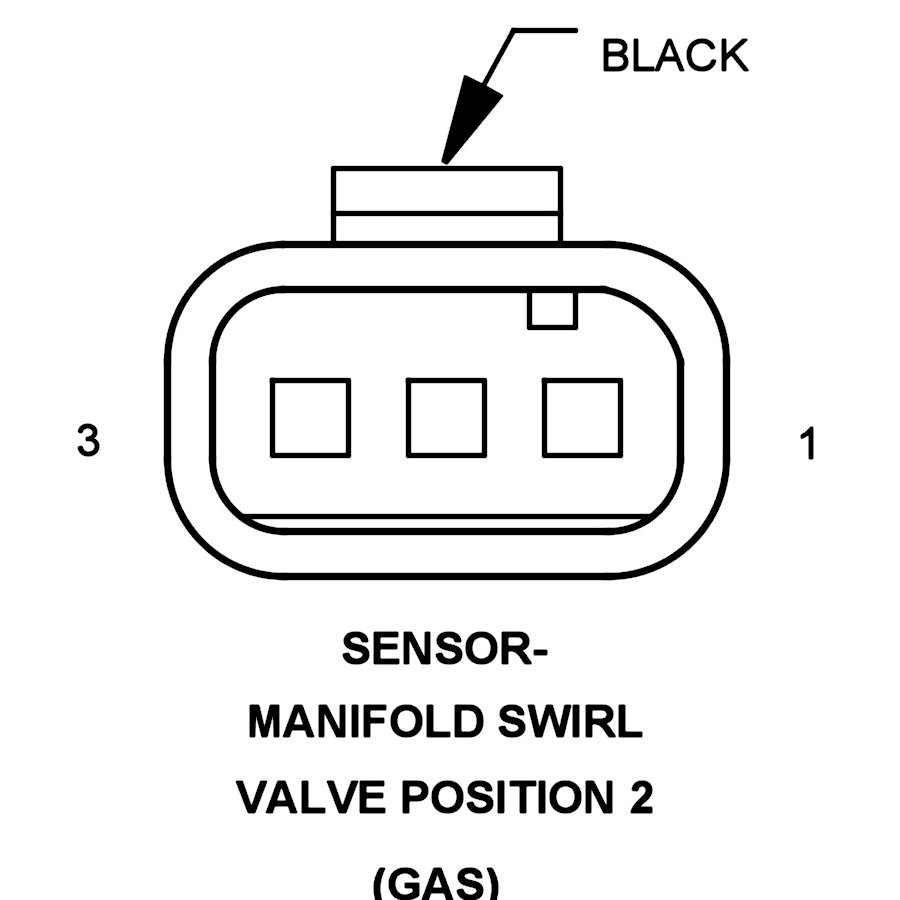

Component : SENSOR-MANIFOLD SWIRL VALVE POSITION 2

Connector:
Name : SENSOR-MANIFOLD SWIRL VALVE POSITION 2
Color : BLACK
# of pins : 3
Qualifier : (GAS)




Pin Description Circuit
1 5 VOLT SUPPLY U779 20PK/DB
2 SENSOR GROUND U6102 20BR/DB
3 MANIFOLD SWIRL POSITION 2 SIGNAL 1602 20PK/DG
