Removal






REMOVAL




1. Disconnect and isolate the negative battery terminal.
2. Remove the A/C condenser fan assembly and place it on a workbench.

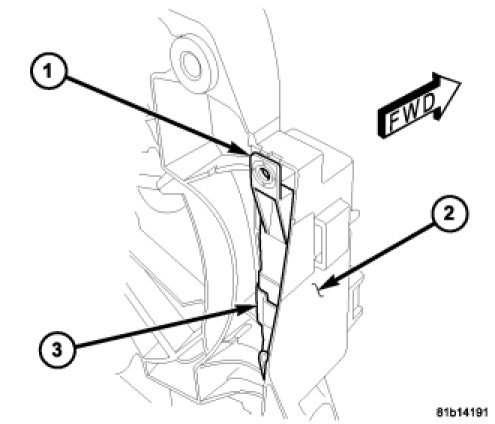

3. Remove the condenser fan relay (1) from the right rear of the condenser fan shroud (2).
4. Disconnect the wire harness lead (3) from the condenser fan relay.
