Installation

Installation






Caution: When installing the accessory drive belt, the bolt must be the correct length and routed correctly. If not engine may overheat due to water pump rotating in wrong direction.

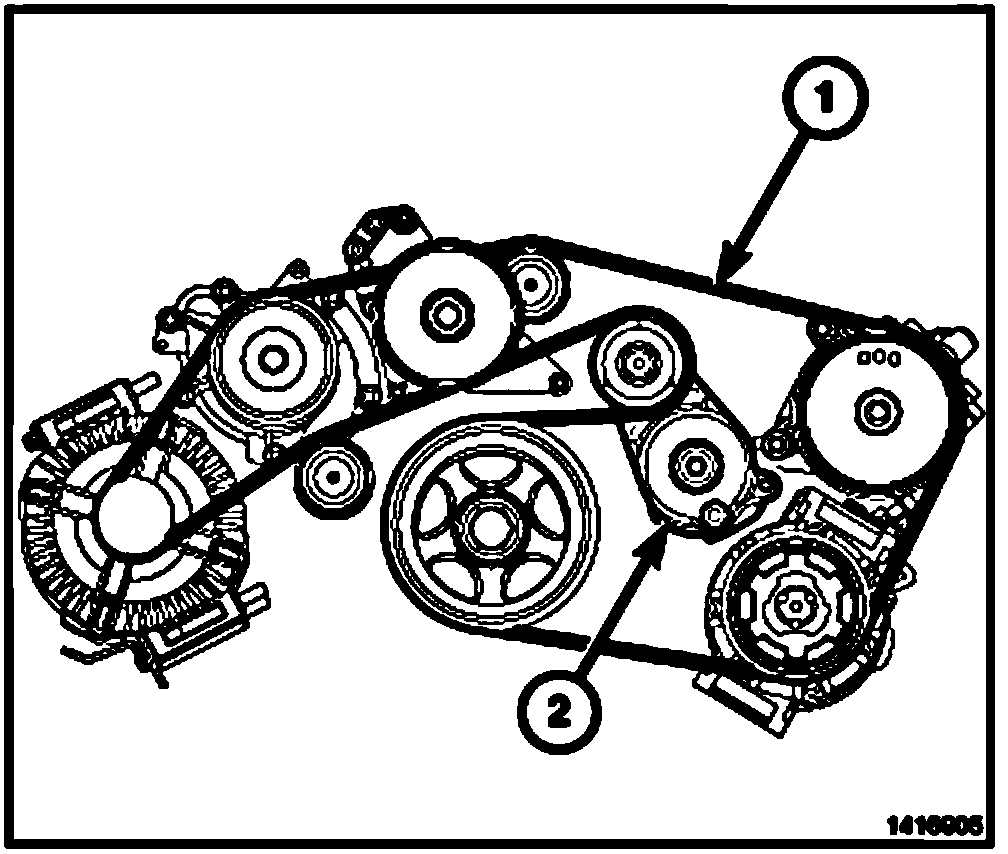

1. Position drive belt (1) over all pulleys except water pump pulley.
2. Using a suitable tool, rotate accessory drive belt tensioner (2) counterclockwise. Place belt over all pulleys. Let tensioner (2) rotate back into place. Be sure bolt is properly seated on all pulleys.
3. Install fan drive pulley.
