Sensor-Camshaft Position 2/2

Component ID: 450

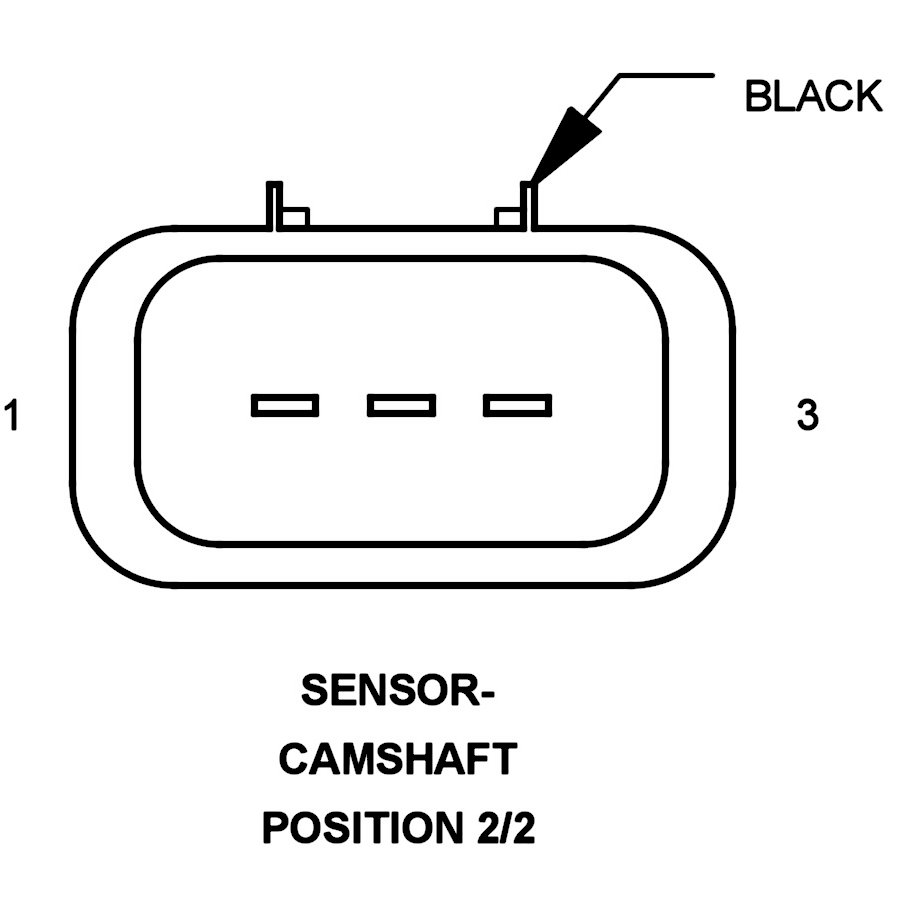

Component : SENSOR-CAMSHAFT POSITION 2/2

Connector:
Name : SENSOR-CAMSHAFT POSITION 2/2
Color : BLACK
# of pins : 3
Gender : FEMALE




Pin Description Circuit
1 SENSOR GROUND U6102 20BR/DB
2 CMP 2/2 SIGNAL 1606 20DG/PK
3 FUSED MAIN RELAY OUTPUT U794 20BK/GY
