Heater Control Valve

Component ID: 561

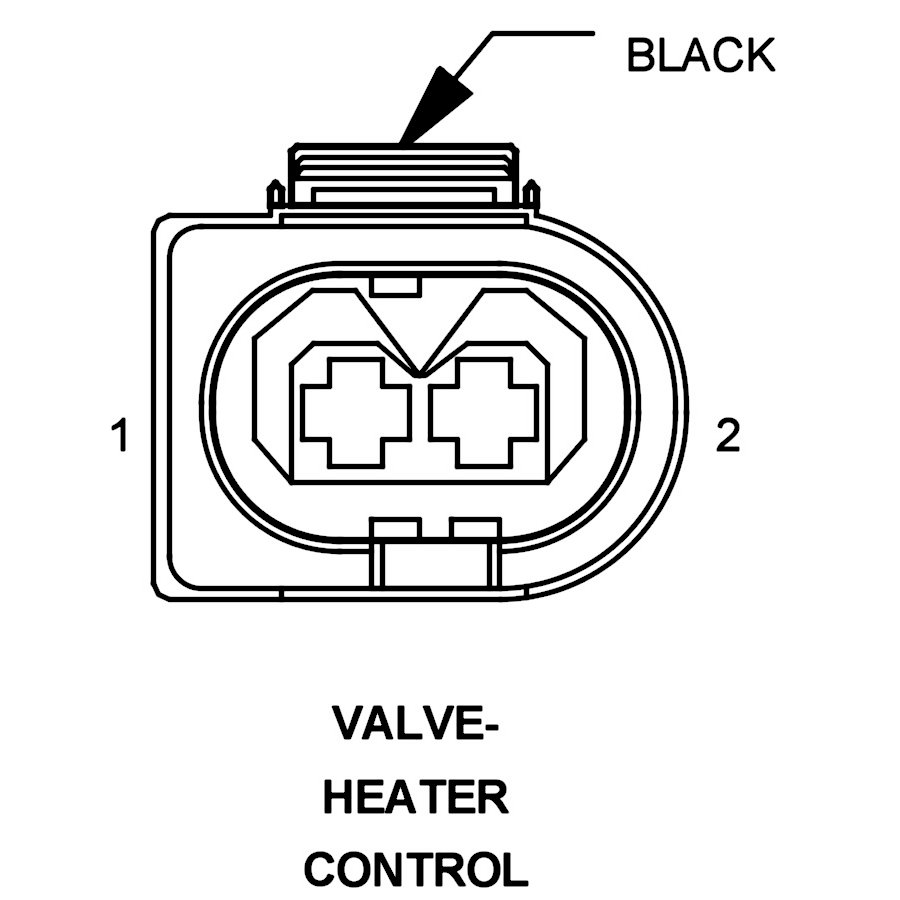

Component : VALVE-HEATER CONTROL

Connector:
Name : VALVE-HEATER CONTROL
Color : BLACK
# of pins : 2




Pin Description Circuit
1 - 2368 18DB/GY
Pin Description Circuit
1 - 2381 18DB/GY
Pin Description Circuit
1 - 3817 14DB/GY
2 GROUND 2367 14BR
