Sensor-Wheel Speed-Left Rear

Component ID: 503

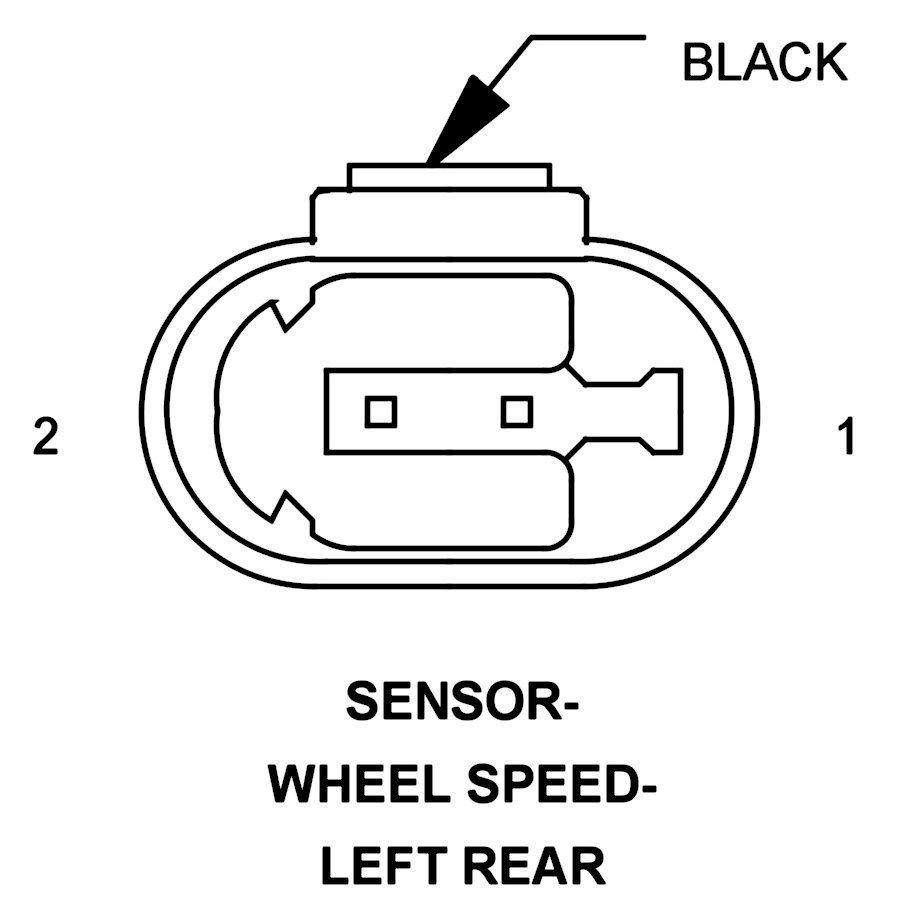

Component : SENSOR-WHEEL SPEED-LEFT REAR

Connector:
Name : SENSOR-WHEEL SPEED-LEFT REAR
Color : BLACK
# of pins : 2




Pin Description Circuit
1 LEFT REAR WHEEL SPEED SENSOR (+) 24 20GY
2 LEFT REAR WHEEL SPEED SENSOR (-) 23 20GY/YL
