Sensor-Wheel Speed-Right Rear

Component ID: 505

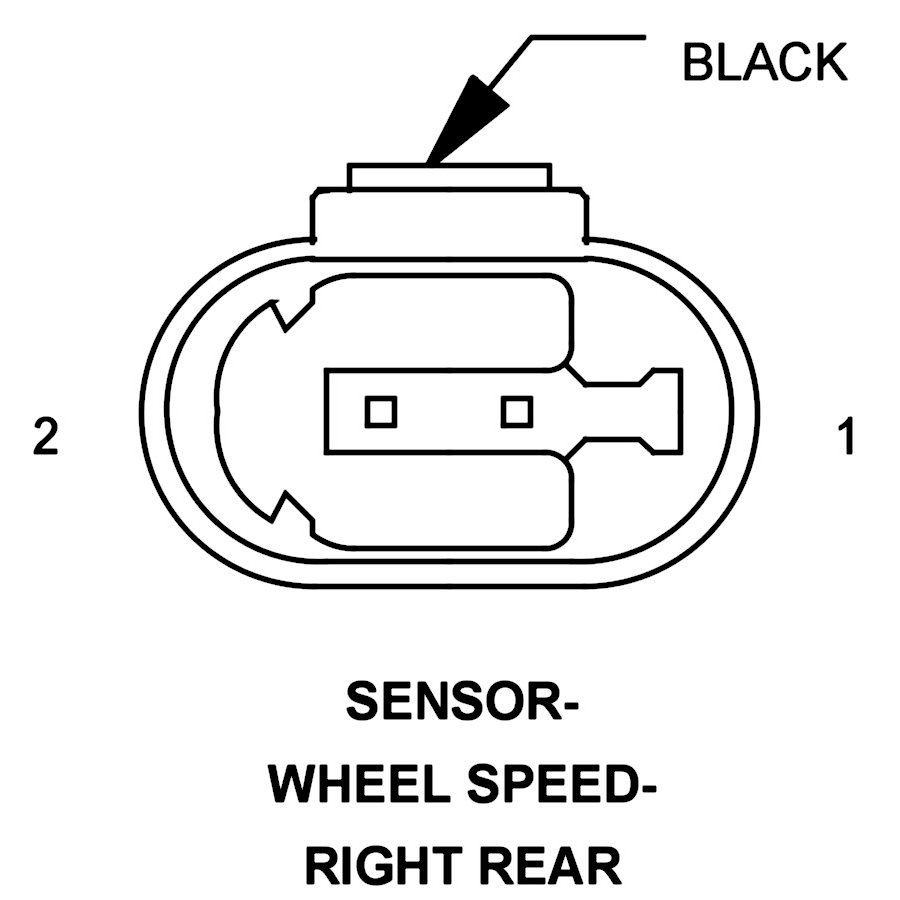

Component : SENSOR-WHEEL SPEED-RIGHT REAR

Connector:
Name : SENSOR-WHEEL SPEED-RIGHT REAR
Color : BLACK
# of pins : 2




Pin Description Circuit
1 RIGHT REAR WHEEL SPEED SENSOR(+) 21 20DB
2 RIGHT REAR WHEEL SPEED SENSOR(-) 20 20DB/YL
