Installation

INSTALLATION
1. Raise and support vehicle.
2. Position starter motor to transmission housing.




3. Install 2 mounting bolts. Refer to Torque Specifications.

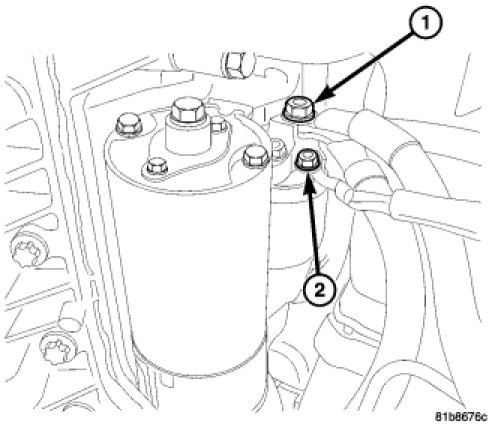

4. Connect battery cable and solenoid wiring to solenoid (2 nuts). Refer to Torque Specifications.

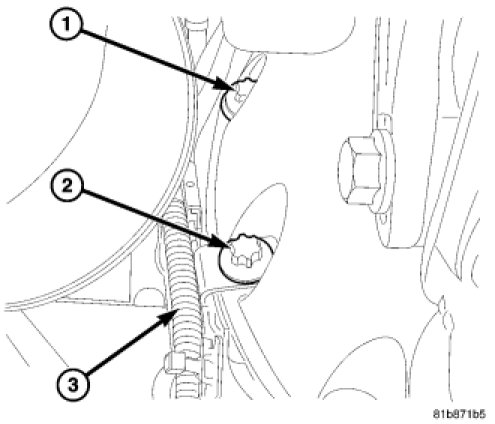

5. Position wiring harness retainer bracket and install retaining bolt.
6. Connect negative battery cable.
