Intake Camshaft Position Sensor

INTAKE CAMSHAFT POSITION SENSOR

1. Lubricate sensor o-ring.

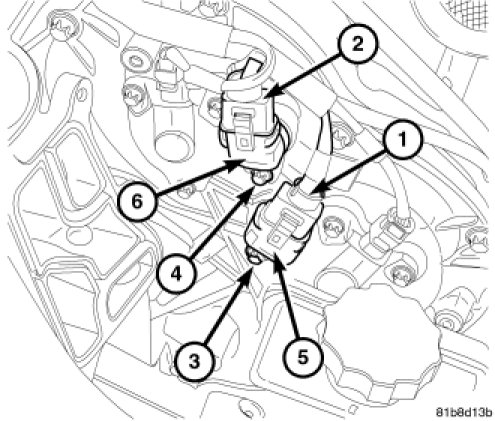

2. Install the intake camshaft position sensor (5) so that it is fully seated on the mounting surface.
3. Install the intake camshaft position sensor bolt (3). Tighten to 9 Nm (80 in. lbs.).




4. Reconnect the intake cam position sensor harness connector (1).
5. Reconnect the negative battery cable.
6. Install the air cleaner and throttle body hose.
