Installation







INSTALLATION

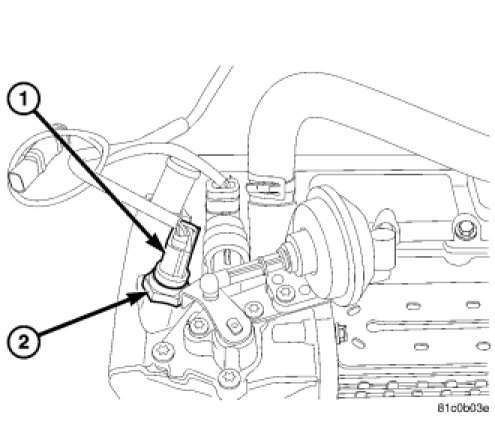

1. Install the EGR back pressure sensor (2).
2. Connect the EGR back pressure sensor harness connector (1).
3. Install the engine cover.
4. Connect the negative battery cable.
