Master Lock Switch - Installation






INSTALLATION

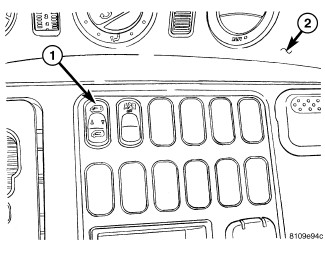

1. Install switch to bezel (1).
2. Connect the electrical connectors
3. Install instrument panel center bezel (2). .
4. Connect the battery negative cable.
