Installation

INSTALLATION





1. Install the clip for the metal lever to the upper shock mounting.

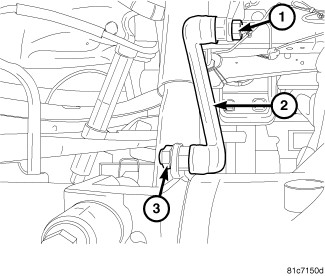

2. Install the lever (2) to the vehicle.
3. Install the lower mounting bolt (3) to the axle.
4. Install the upper mounting bolt (1) to the ALB.

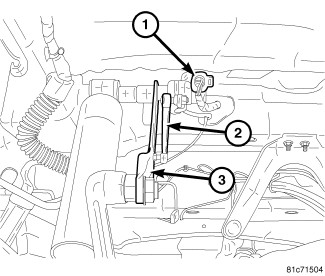

5. Install the ALB unit (1) to the body. Tighten nuts to 8 Nm (71in.lbs.).
6. Reconnect the ALB electrical connector (1).
7. Install the lever (2) to the ALB unit (1).
8. Reconnect the ALB electrical connector (1).
9. Lower the vehicle.
