Body Control Module C9 (HLS) 52 Way

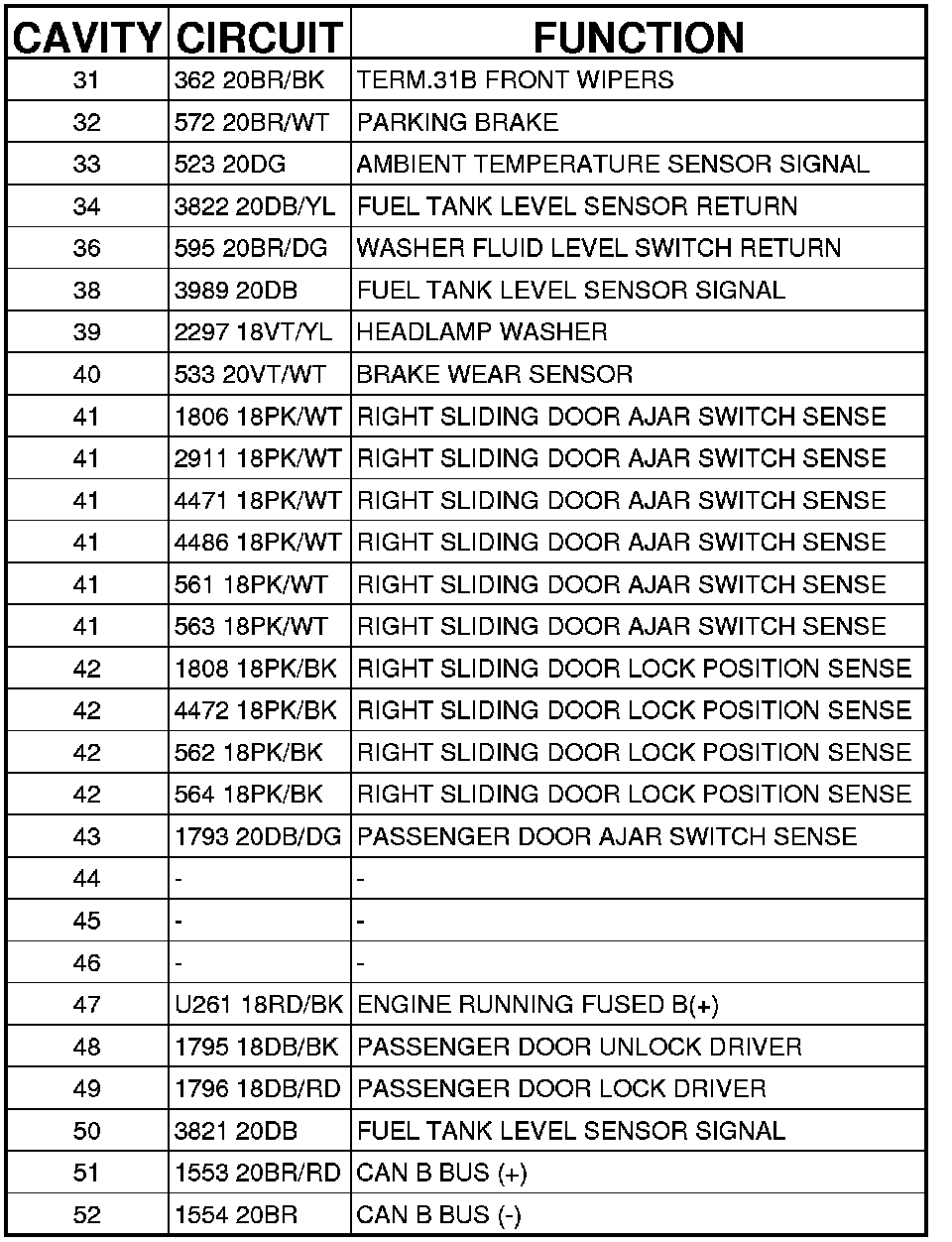

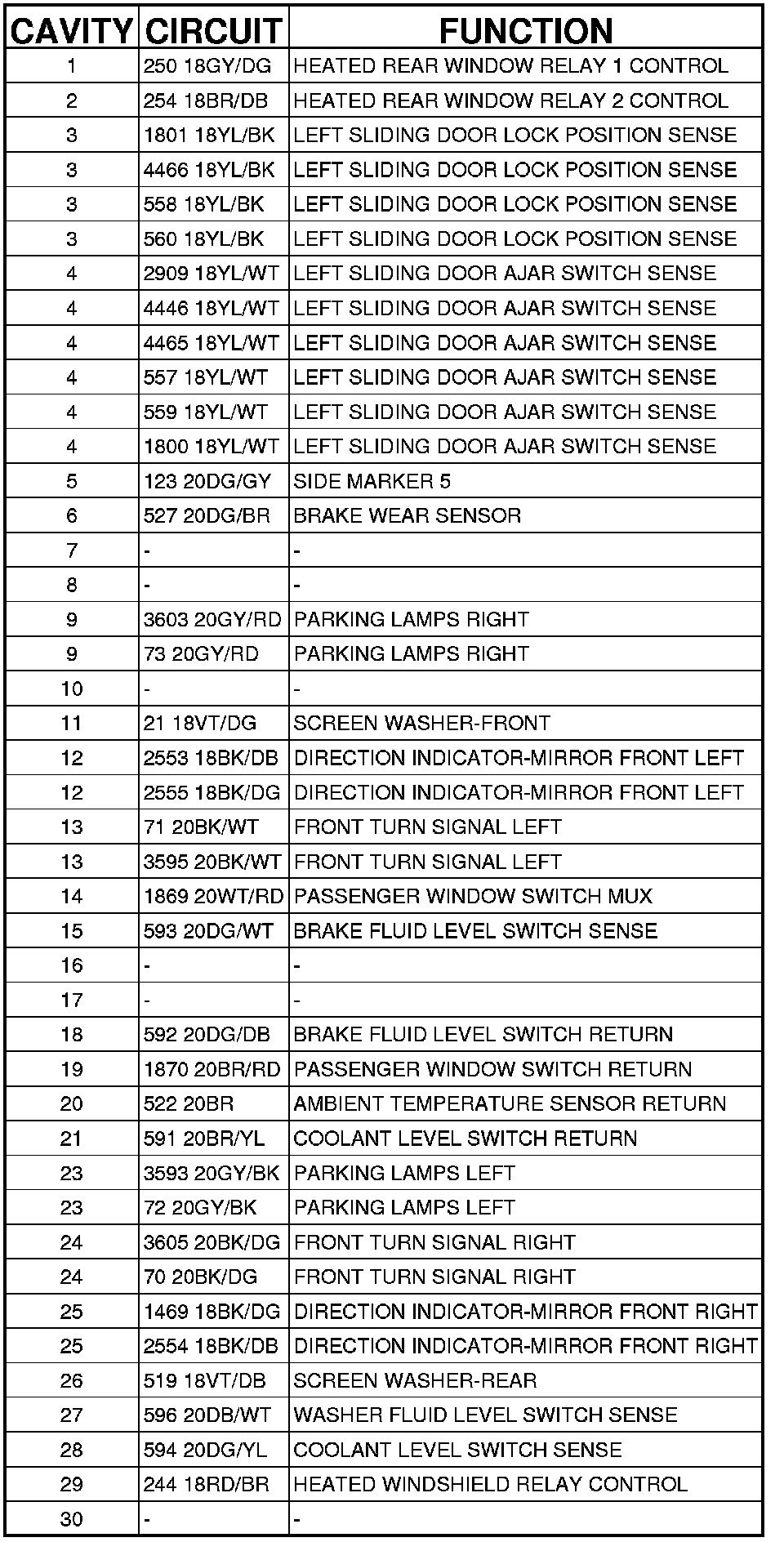

Connector C9 - (HLS) 52 WAY




MODULE-BODY CONTROL - (HLS) 52 WAY
