Fluid - Differential: Service and Repair

DRAIN AND FILL






NOTE: Drain oil when warm.

1. Clean area around oil fill plug and drain plug.

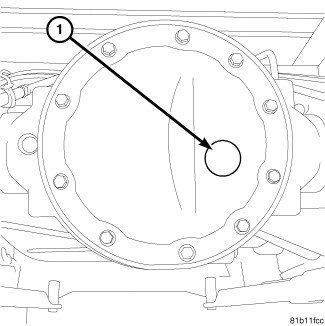

2. Remove oil drain plug (1) and drain oil.
3. Install oil drain plug and tighten to Nm 100 (74 ft. lbs.).

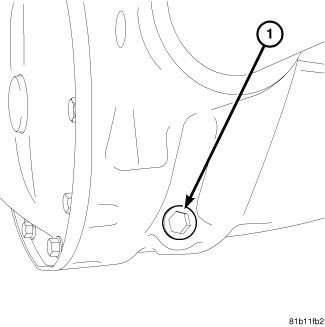

4. Remove oil fill plug (1) and fill housing up to bottom edge of oil fill hole.
5. Install oil fill plug.
