Fuel Pressure Sensor, Fuel Rail - Installation

INSTALLATION

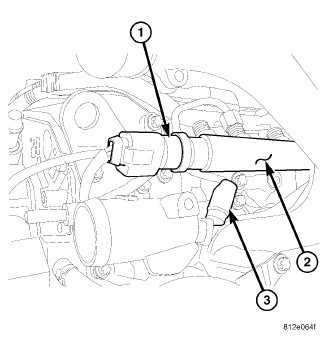

1. Install the sealing ring onto the sensor and screw the fuel pressure sensor into the fuel rail.
2. Tighten the senor to 60 Nm (44 ft. lbs.), back it off 90 degrees and retighten to 80 Nm (59 ft. lbs.).
3. Connect the sensor wiring harness connector.

CAUTION: Care must be taken when installing the engine cover. Assure the proper routing of the fuel injector return fuel hose to the banjo bolt fitting in the left rear corner of the cover. Failure to do so may pinch or damage the hose causing fuel leakage or a driveability concern.

4. Start engine, allow to run for a few minutes, turn the engine off and inspect for leaks.Warning - High Fuel System Pressure
