Oxygen Sensor - Installation






INSTALLATION

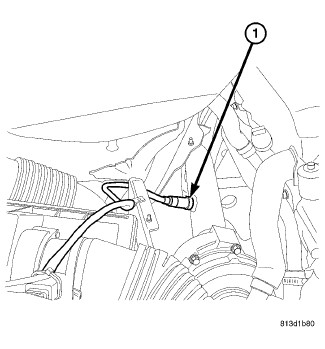

1. Install the oxygen sensor (1).
2. Properly position the oxygen sensor wiring harness and connect the electrical connector.
3. Connect the negative battery cable.
