Installation

INSTALLATION

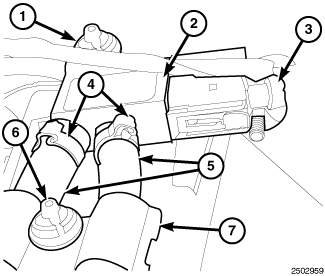

1. Using new clamps (4), install the differential pressure sensor hoses (5) and crimp the clamps (4).
2. Install the differential pressure sensor (2). Tighten nut (1) to 8 Nm (71 in. lbs.).
3. Install bracket (7). Tighten nut (6) to 8 Nm (71 in. lbs.).
4. Connect the differential pressure sensor harness connector (3).
5. Connect the negative battery cable.
