EGR Temperature Sensor - Installation






INSTALLATION

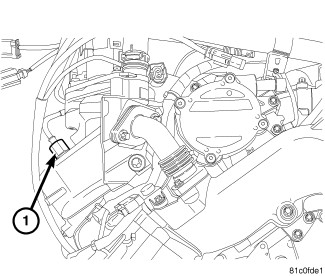

1. Install the EGR temperature sensor (1).

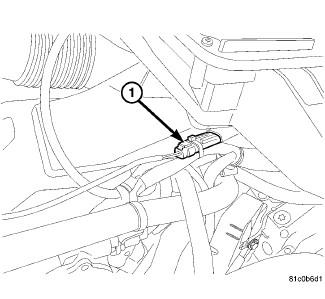

2. Reconnect the EGR temperature sensor harness connector (1).
3. Reconnect the battery negative cable.
