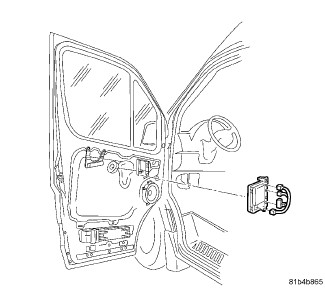

Door Module - Removal






REMOVAL





1. Disconnect and isolate the battery negative cable.
2. Remove the door trim panel. .
3. Disconnect the electrical connectors.
4. Unclip and remove the module.
