Axle Nut






Rear Axle

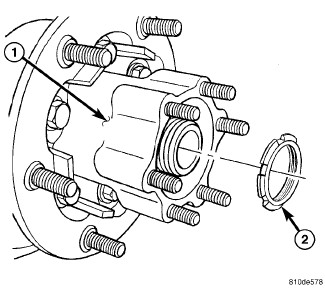

Install inner hub (1) nut (2).
Tighten inner hub nut with Hub Nut Socket 10095 to 300 Nm (221 ft. lbs.) while spinning the wheel hub constantly. Turn back inner nut and then tighten until it touches the thrust washer without play. Then tighten 1/8 turn.

Install outer hub (1) nut (2) and tighten with Hub Nut Socket 10095 to 250 Nm (184 ft. lbs.).
