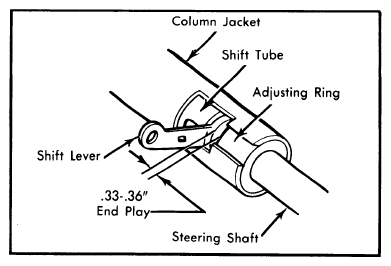

PI ace shift tube lever in "N" or "D". Loosen adjusting ring clamp screws and rotate adjusting ring to obtain 0.33 - 0.36" end play between shift tube lever and adjusting ring. Tighten adjusting ring clamp screws. See Fig 1.
ADJUSTMENT SPECIFICATIONS
| Application | Specification | |
|---|---|---|
| Lower Bearing Adjustment | ||
| "G" Models | .50"±.04" | |
| "P" Models | 1.26"±.02" | |
| Shift Tube Adjustment | ||
| Automatic Transmission | .33-.36" | |
| Manual Transmission | .005" | |
TIGHTENING SPECIFICATIONS
| Application | Ft.Lbs. | |
|---|---|---|
| Flexible Coupling Bolt & Studs | ||
| "P" Models | 20 | |
| All Others | 18 | |
| Lower Jacket Bearing Clamp | 30 | |
| Lower Coupling-to-Worm Shaft Clamp | ||
| "P" Models | 75 | |
| All Others | 30 | |
| Application | INCH Lbs. | |
|---|---|---|
| Column-To-Dash Panel | 125 | |
| Floor Pan Cover Plate | ||
| "P" Models | 24 | |
| "G" Models | 30 | |
| Firewall Bracket Clamp | ||
| "G" Models | 150 | |
| "P" Models | 98 | |
| All Others | 90 | |
| Lower Bearing Adjusting Ring Bolt | 70 | |
| Ignition Switch Screws | 35 | |
| Column Lock Plate Cover | 20 | |
| Turn Signal Housing | 45 | |
| Lock Bolt Spring Screw (Tilt Wheel) | 35 | |
| Bearing Housing Support Screw (Tilt Wheel) | 60 | |
