Charts 1-8

Fig 1: Chart 1 - Dwell Fixed Under 10° (Lean Exhaust Indication)

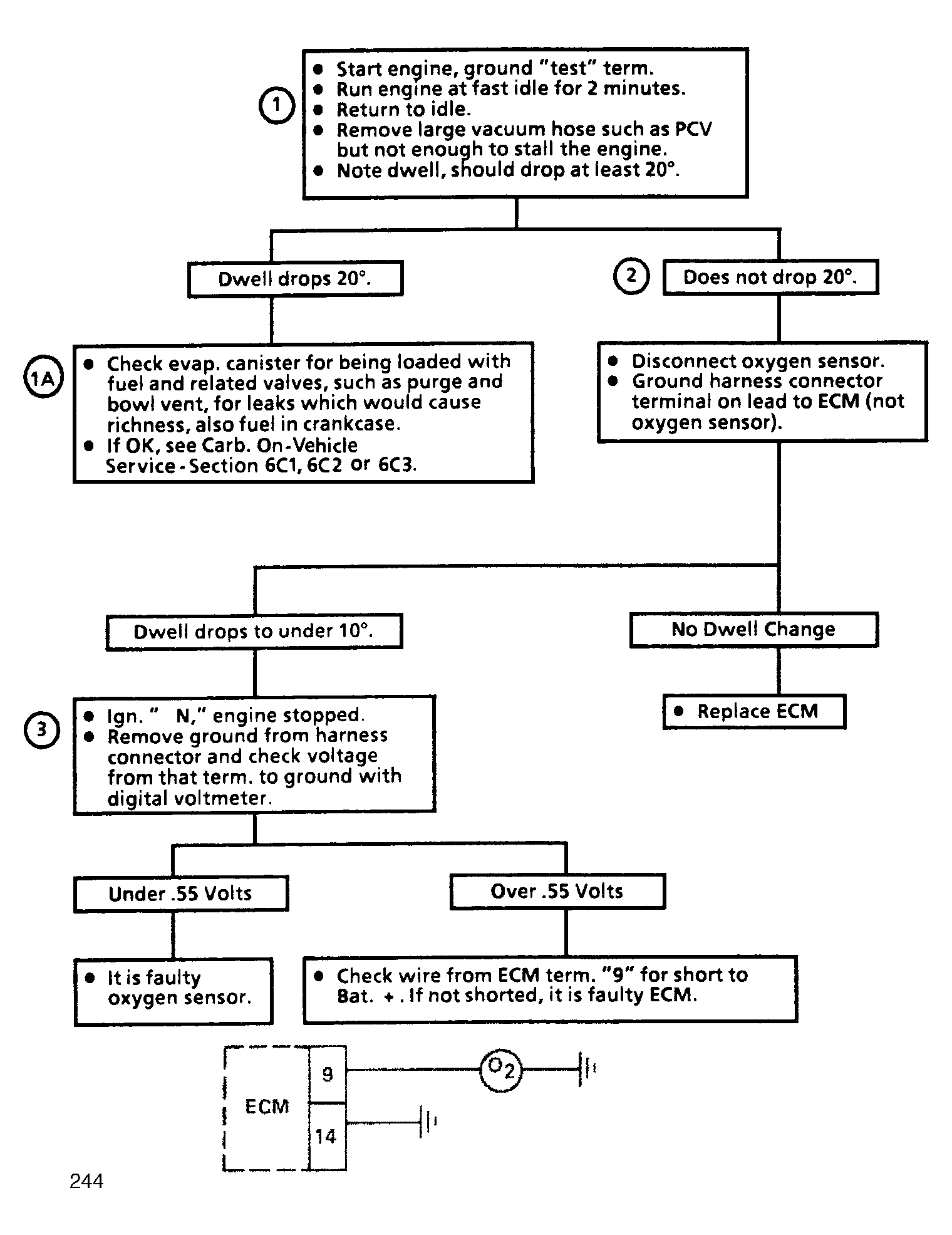

Fig 2: Chart 2 - Dwell Between 10°-50° Open Coolant/O2 Sensor Ckt

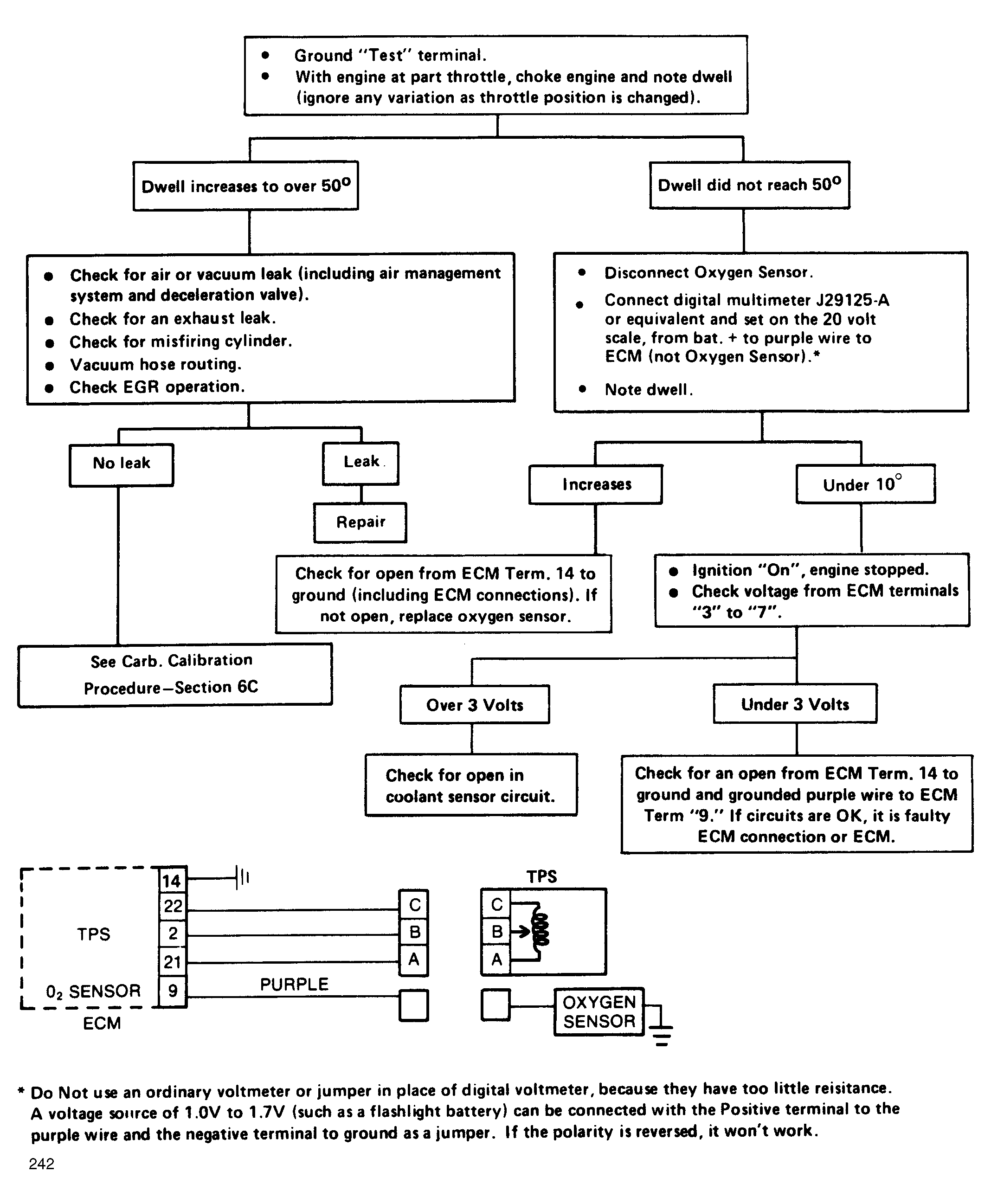

Fig 3: Chart 3 - Fixed Dwell Over 50° (Rich Exhaust Indication)

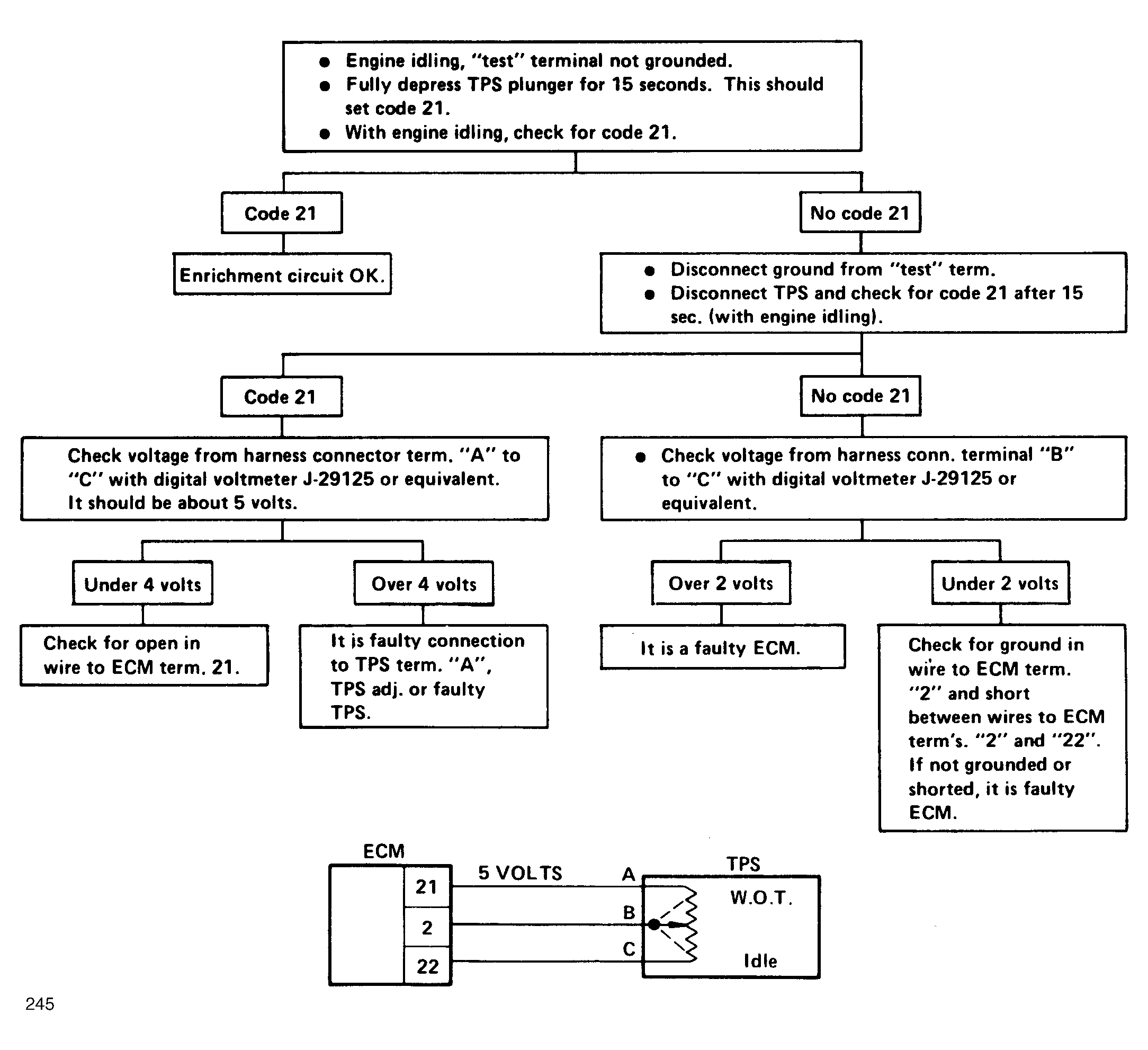

Fig 4: Chart 4 - TPS Enrichment Check

Fig 5: Chart 5 - "CHECK ENGINE" Light Inoperative

Fig 6: Chart 6 - Won't Flash Code 12 (Remote Lamp Driver In Harness)

Fig 7: Chart 7 - Map & Baro Output Check
