Code 42 - Est/Est Bypass Circuit

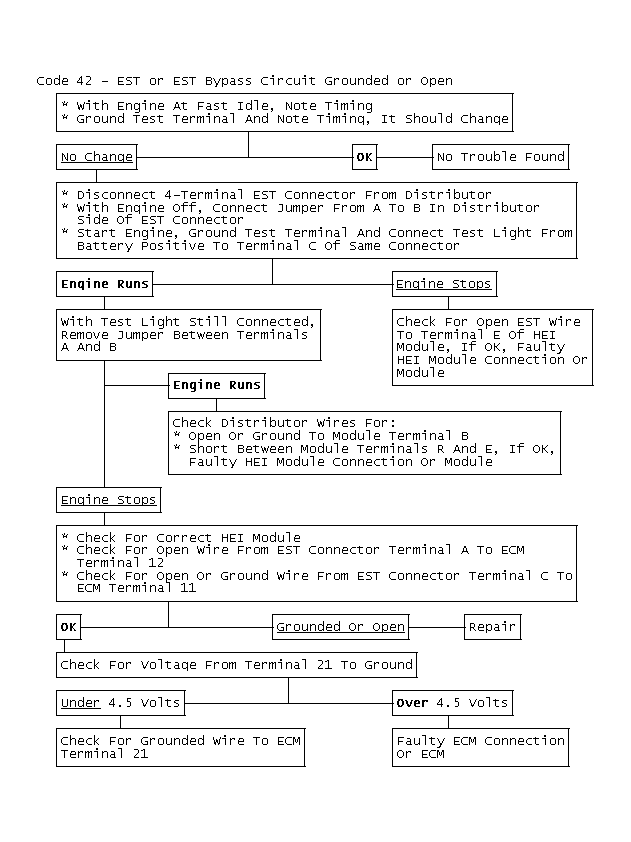

Fig 1: Flow Chart, Code 42 - EST or EST Bypass Circuit Grounded or Open

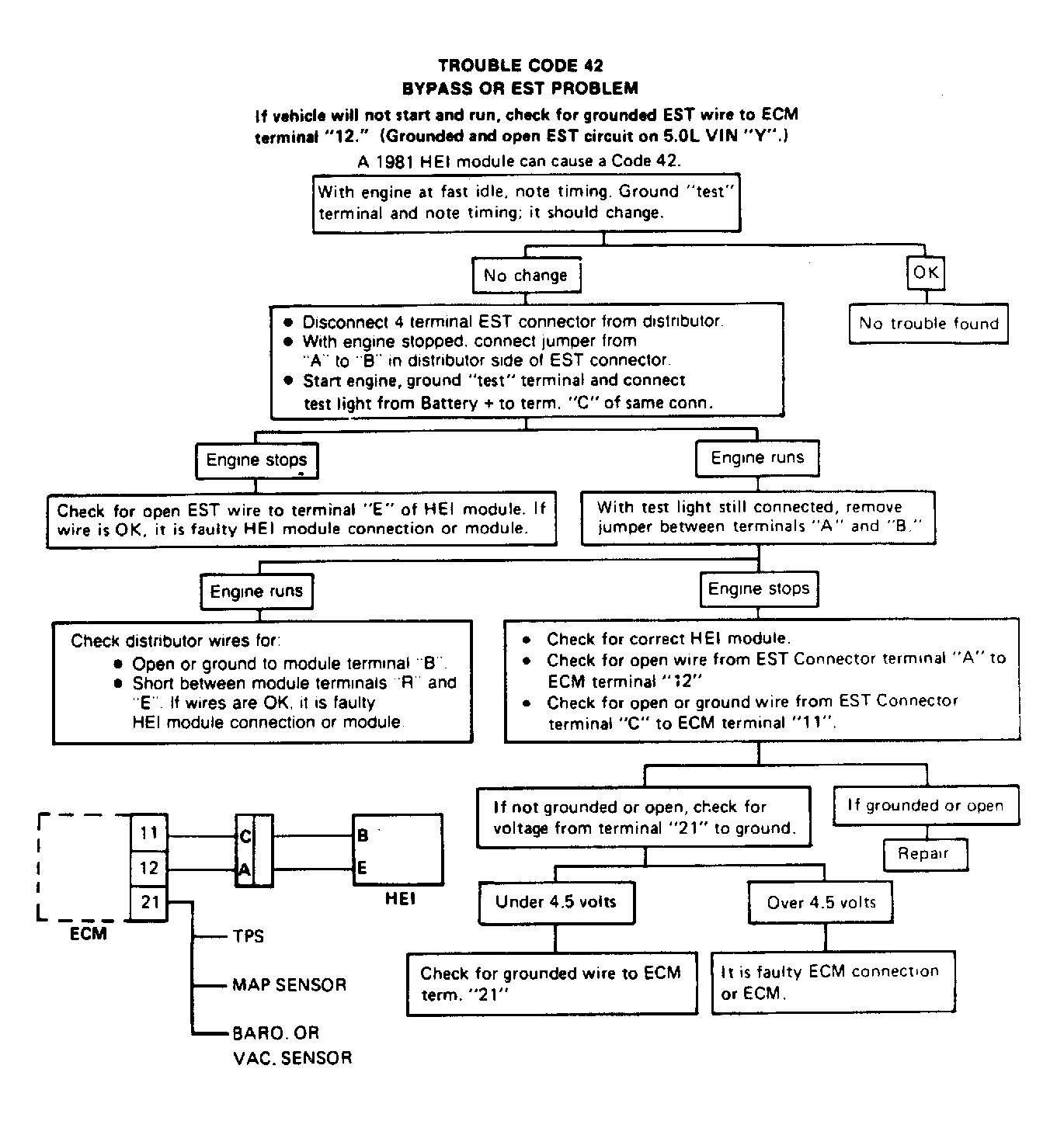

Fig 2: Flow Chart, Code 42 - EST or EST Bypass Circuit Grounded or Open
