Code 13, Open Oxygen Sensor Circuit

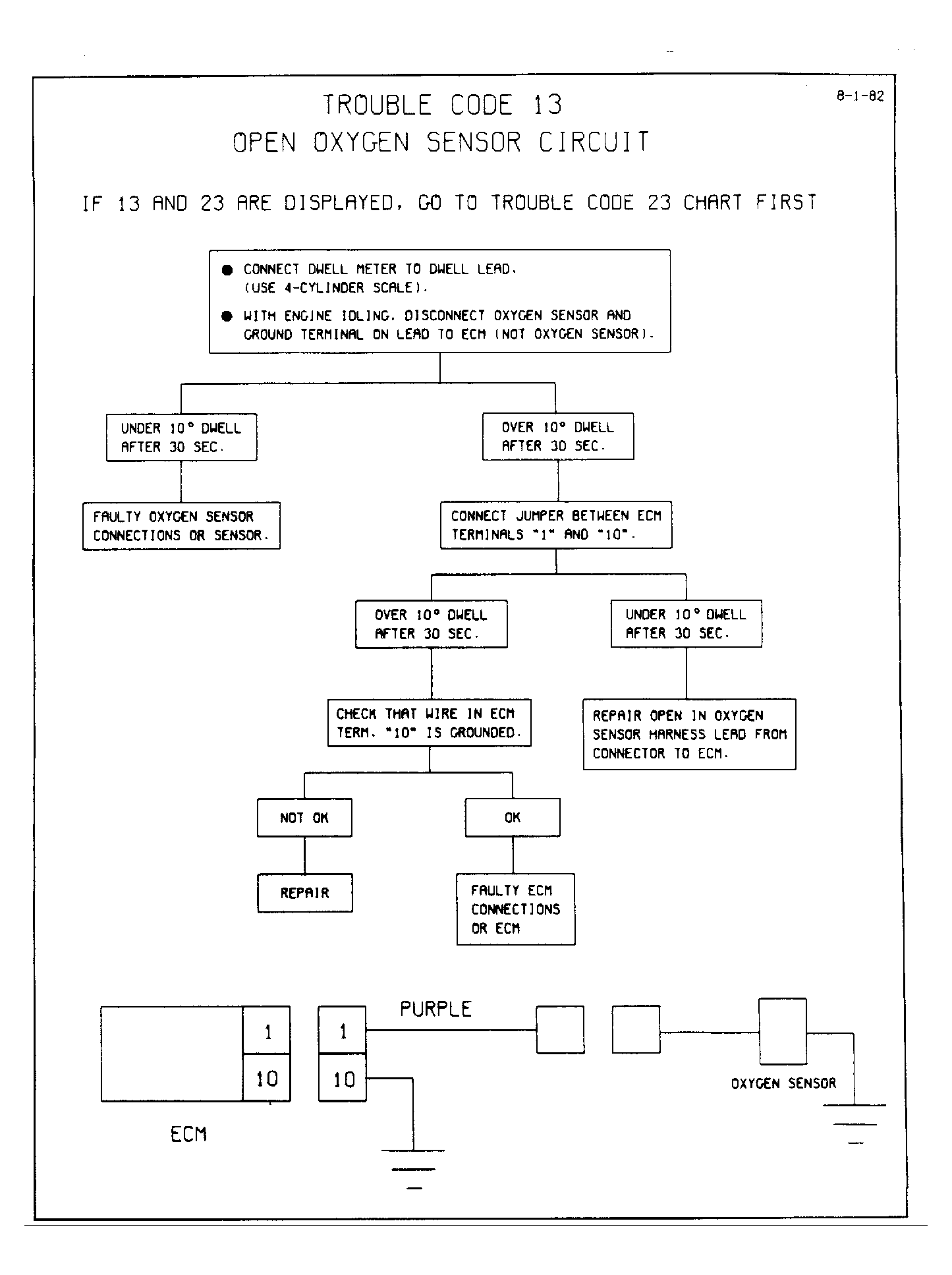

Fig 1: Code 13, Open Oxygen Sensor Circuit
G9415
Fig 2: Code 13, Open Oxygen Sensor Circuit
GB0020804
