Code 14, Shorted Coolant Sensor Circuit

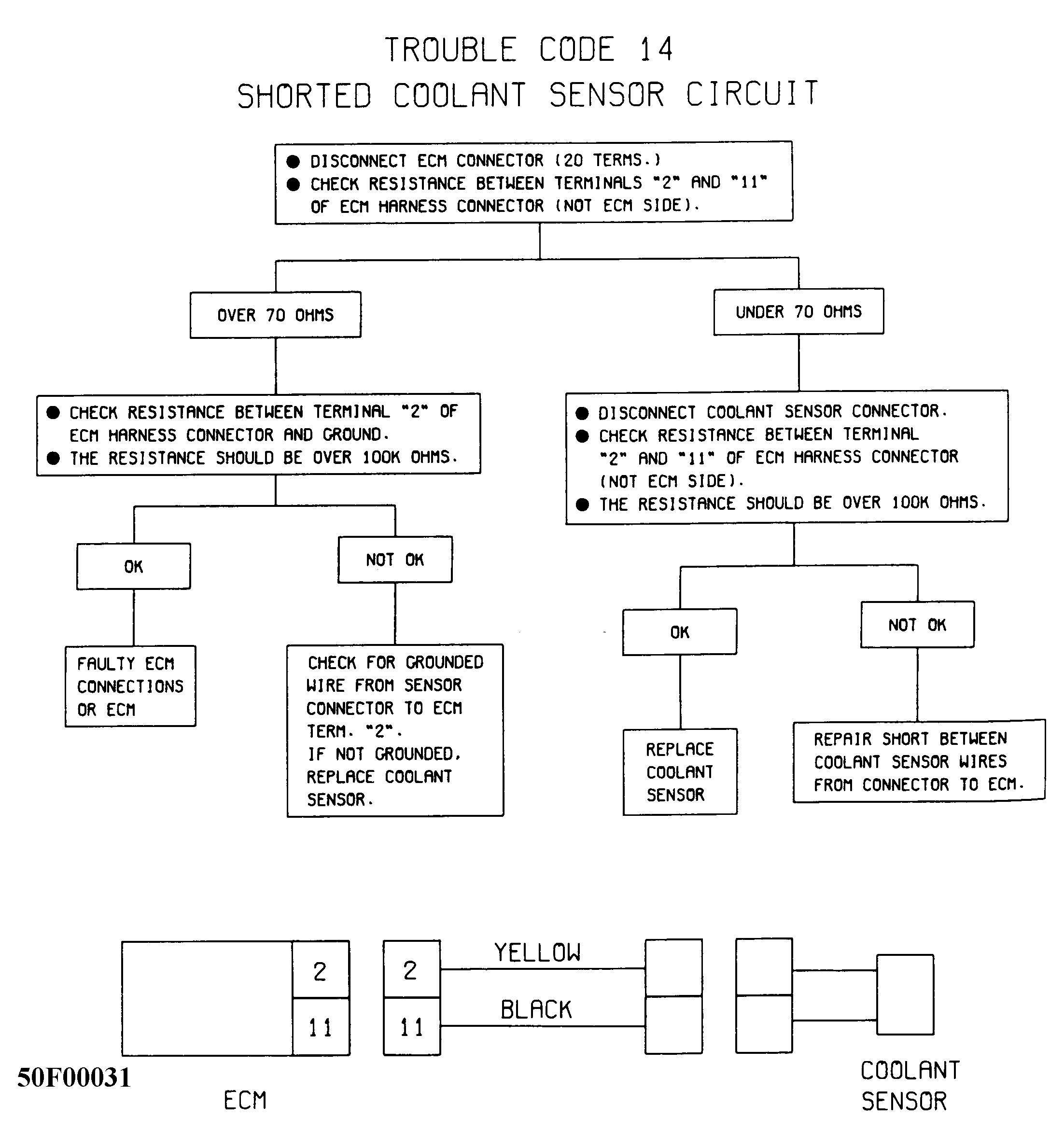

Fig 1: Code 14, Shorted Coolant Sensor Circuit
G50F00031
Fig 2: Code 14, Shorted Coolant Sensor Circuit
GB0020805
