Code 31, No Reference Signal

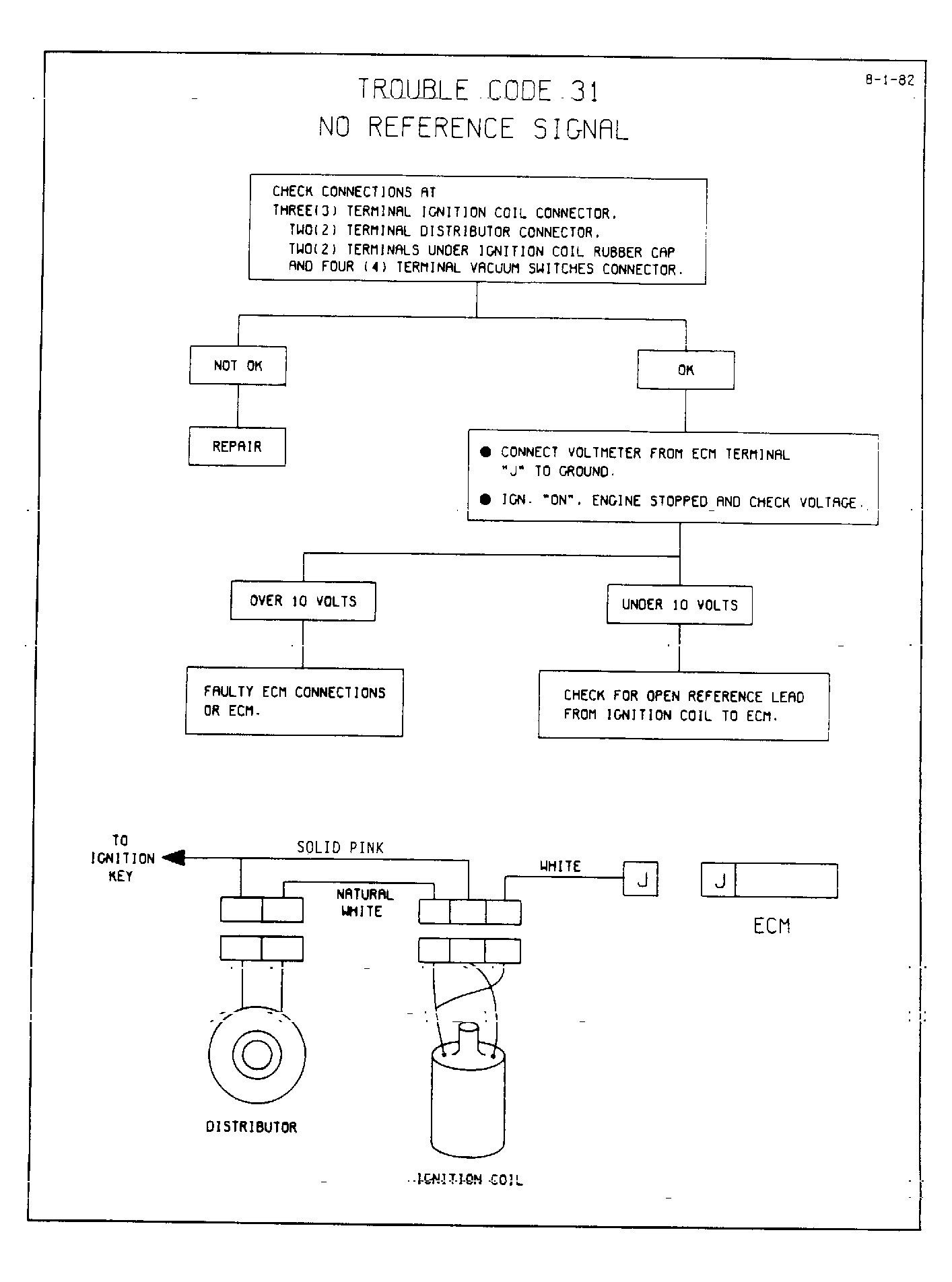

Fig 1: Code 31, No Reference Signal

G9422

Fig 2: Code 31, No Reference Signal

GB0020813
